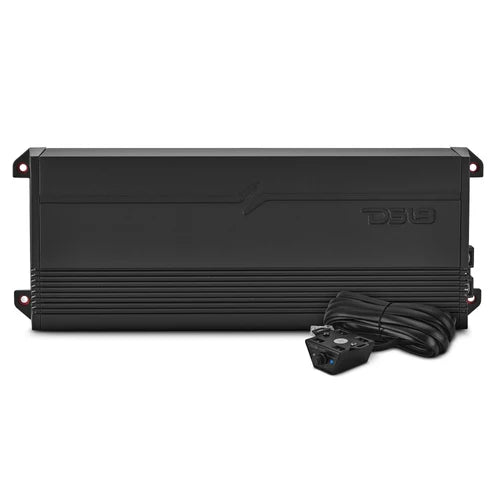

DS18 6-Channel Amplifier 3 x 500/4ohm Bridge 6 x 250/2ohm 6 x 200/4ohm Watts RMS

G3600.6D

• Power
• Total Watts (Peak): 3600W
• RMS Power @ 4 Ohm: 6 x 200W
• RMS Power @ 2 Ohm: 6 x 250W
• RMS Power @ 1 Ohm: N/A
• RMS Power @ 4 Ohm Bridged: 3 x 500W

• Audio
• Frequency Response: 20Hz–20kHz
• Signal-to-Noise Ratio: >90dB
• Efficiency @ 4 Ohm: 75%
• Damping Factor: 75
• Input Impedance: 22K Ohm
• Channel Separation: 57dB
• Total Harmonic Distortion (THD): 0.01%
• Low-Level Input Range: 0.25–6V
• High-Level Input: No
• Selectable Crossover: Variable HPF / HPF-BPF-FULL (5/6CH)
• Crossover Filter Range: HPF: 10–250Hz / LPF: 50–250Hz
• Bass Boost Range: 0–12dB
• Bass Boost Frequency: Fixed @ 45Hz
• Infrasonic Filter: N/A
• Phase Selector: No

• Features
• Amplifier Class: Digital Class D
• Amplifier Type: Full Range
• Number of Channels: 6CH
• Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridged
• LED Indicators: Power / Protection / Clip
• Power Input Terminal Size: 4ga
• Fuse Size: 3 x 40A
• Remote Level Control: Yes
• Cooling Fan: No
• Voltmeter: No
• Thermal Protection: Yes
• Overload Protection: Yes
• DC Output Protection: Yes
• Short-Circuit Output Protection: Yes
• Voltage Input Protection: Yes
• Clipping Protection: Yes
• Body Color / Finish: Matte Black
• Input Selector: Yes (2CH / 4CH / 6CH)
• Compact Size for Easy Installation in Various Applications: Yes
• Stable/Reliable Two- or Four-Layer Trace PCB Design: Yes
• Surface-Mount Component Technology: Yes
• Quality Control Verification Using Audio Precision Instruments: Yes

• Measurements
• Overall Length: 12.8" / 325mm
• Overall Width: 4.72" / 120mm
• Overall Height: 1.96" / 50mm
• Heatsink Length: 10.9" / 278mm
• Gross Single Unit Weight: 2.2kg
