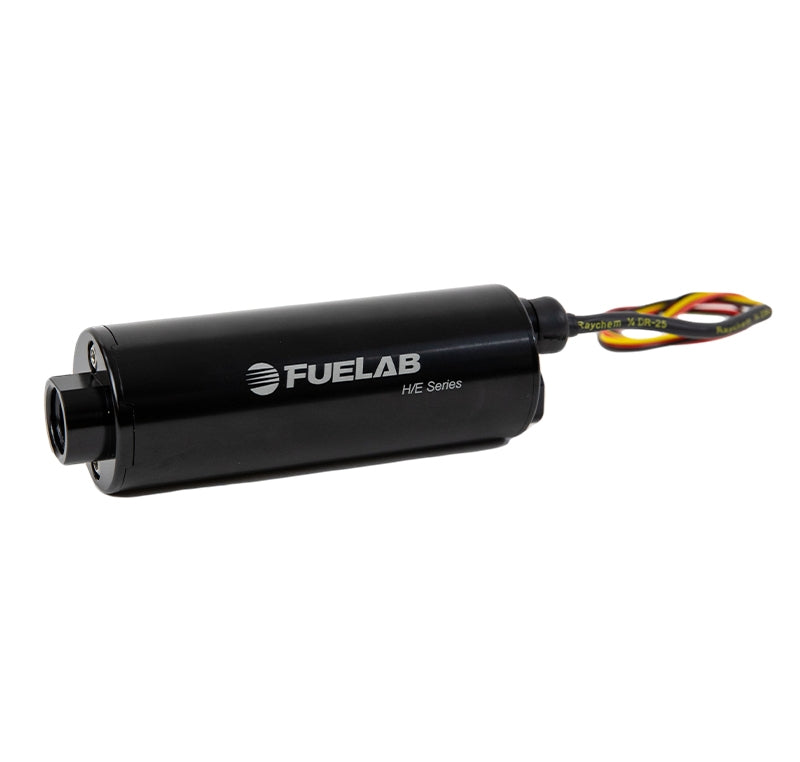

Fuelab High Efficiency EFI In-Tank Twin Screw Fuel Pump - 625 HP

48401250 LPH @ 45PSI, 125PSI MAX, 13.5v-RATED UP TO 625HP-Reliable and Efficient

Pump Feature

• Compatible with gasoline, diesel, methanol and ethanol
• Twin Screw Rotor Pumping Mechanism
• 125PSI Max Operating Pressure
• 625 HP power support
• Higher efficiency means less current draw and less noise
• Superior Priming Capabilities
• Greater resistance to cavitation (vapor lock)
• Backed by a limited lifetime warranty

Electronic Features

• 8 to 16 volt vehicle electrical system compatibility
• Variable duty motor speed
• Can be run by existing vehicle outputs for brushless control or our 7200x Series controller

Motor Features

• Lightweight super-efficient DC brushless motor to minimize current draw
• Powerful high flux density Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Construction Features

• Compact, lightweight design, less than 1.5lbs. Overall length 6.5”, diameter 2”
• Billet Aluminum Construction with anodize per MIL-A-8625 Type II
• Can be mounted in-tank or externally
• Long Life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port style -8AN fittings

Pulse Width Modulation Compatibility (PWM)

• Compatible with most aftermarket ECU's with PWM output frequency
• Compatible from 100Hz to 2500Hz
