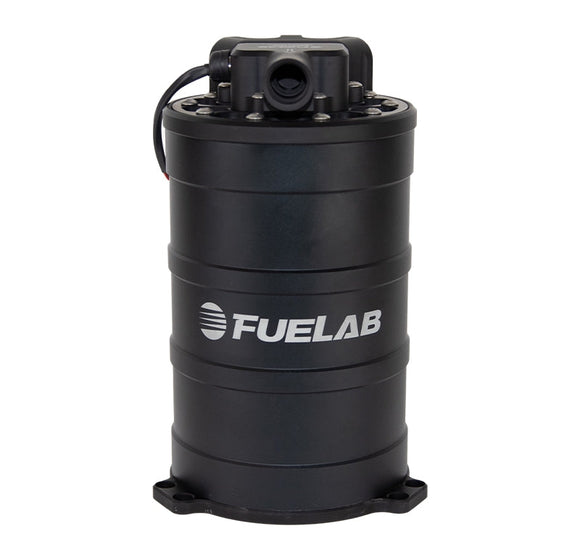

Fuelab High Efficiency Series 235mm Fuel Surge Tank System - 625 HP SAE Plate Mount Pump

617012.1L Fuel Surge Tank System with Speed Controllable, Twin
Screw DC Brushless Fuel Pump, 250lph

Product Features:

• Allows for high fuel flow output with little or no modifications to the OE fuel tank and module
• Prevents fuel sloshing by maintaining a ready volume of fuel
• 235mm Tall
• FST Rated volume: 2.1 L
• Single Twin Screw DC Brushless fuel pump included
• Rated to flow 250lph at 45psi, 125psi Max
• Integrated controller with PWM speed control
• Billet aluminum and O-ring Construction using -8AN Fuel Ports
• Compatible with Pump and Racing Gasoline, and E85
• Return line is required, returns excess fuel back to the vehicle fuel tank
• Optional FST Upgrade Accessory Kits Sold Separately

Pulse Width Modulation Compatibility (PWM)

• Compatible with most aftermarket ECU's with PWM output frequency
• Compatible from 100Hz to 2500Hz
