13647639994-BOS-KT4
IMPORTANT: Per BMW Service Bulletin S1 B13 03 15 the injectors in the vehicle may not match what is listed in the BMW ETK. Identify the injector installed in the vehicle using ISTA / D 4.04 or later test plan using the following path: Vehicle Management - Service Functions - Powertrain - Engine Electronics - Injector Determination. Test plan will state "This engine requires EU# Injectors" - Also Required: (1) 13 53 7 577 649 Decoupling Element
Port Fuel Injection (PFI) is the world’s most widely used system for internal combustion engines and offers many advantages for engines with a low pressure output.
Features and Benefits:
- Low-pressure systems are less complex and more affordable than high-pressure systems
- Robust combustion process tolerates lower-quality fuel
- Maintenance-friendly design reduces the overhead for system diagnostics
This Kit includes everything you need to professionally service your fuel injectors on your N20 BMW.

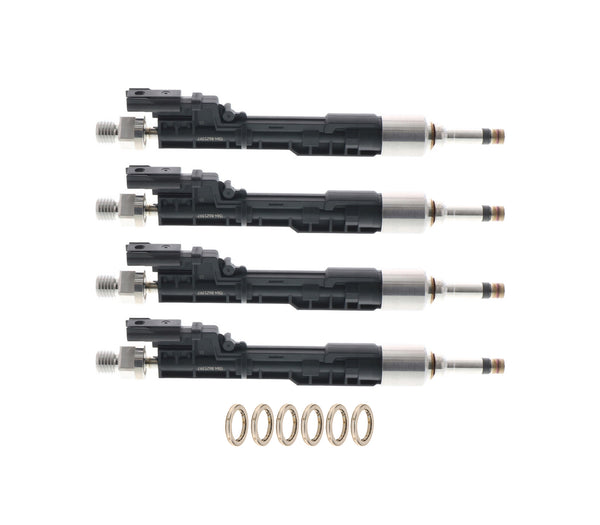

Kit Includes:
- (4) EU6 Fuel Injectors (Bosch)
- (4) Decoupling Elements (Genuine)
Part #'s
EU6 Fuel Injectors
13-64-7-639-994 / 13 64 7 639 994 / 13647639994
13-64-8-625-397 / 13 64 8 625 397 / 13648625397
Bosch Part #'s 0261500260 / 62825 / 0261500533 / 62838 / 0261500172
Decoupling Elements
13-53-7-577-649 / 13 53 7 577 649 / 13537577649
This Part Fits The Following Vehicles
| MAKE | MODEL | SUBMODEL | ENGINE | DRIVETRAIN |
|---|---|---|---|---|
| BMW | 2 Series F2X (2014+) | 228i | N20 2.0L | |
| BMW | 2 Series F2X (2014+) | 228i xDrive | N20 2.0L | |
| BMW | 3 Series F3X (2012-2019) | 320i | N20 2.0L | |
| BMW | 3 Series F3X (2012-2019) | 320i xDrive | N20 2.0L | |
| BMW | 3 Series F3X (2012-2019) | 328i | N20 2.0L | |
| BMW | 3 Series F3X (2012-2019) | 328i xDrive | N20 2.0L | |
| BMW | 4 Series F3X (2014-2019) | 428i | N20 2.0L | |
| BMW | 4 Series F3X (2014-2019) | 428i xDrive | N20 2.0L | |
| BMW | 5 Series F10 (2011-2016) | 528i | N20 2.0L | |
| BMW | 5 Series F10 (2011-2016) | 528i xDrive | N20 2.0L | |
| BMW | X Series X1 | E84 (2012-2015) | sDrive28i N20 2.0L | |
| BMW | X Series X1 | E84 (2012-2015) | xDrive28i N20 2.0L | |
| BMW | X Series X3 | F25 (2011-2017) | sDrive N20 2.0L | |
| BMW | X Series X3 | F25 (2011-2017) | xDrive 2.8i N20 2.0L | |
| BMW | X Series X4 | F26 (2015-2017) | xDrive28i N20 2.0L |
