FULL TURBINE KIT GT5565_BB R35

11003-AN019

SPL FULL TURBINE KIT without
the TURBINE SUCTION KIT

 This product is a kit based on the SPECIAL FULL TURBINE KIT GT5565_BB (Part No. 11003-AN020), excluding the TURBINE
SUCTION KIT (Part No. 14021-A001).

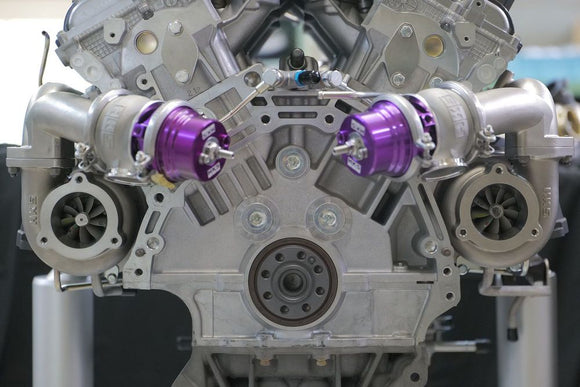

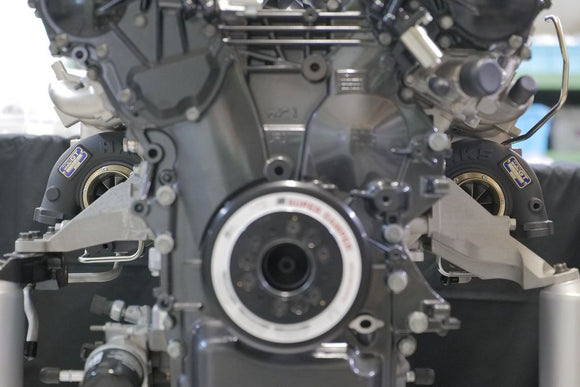

 It inherits the signature “symmetrical layout” characteristic of the R35 full turbine kit, and has been newly configured with GT5565_BB
specifications.
 Minimal vehicle modifications are required, and it supports high-power setups exceeding 1000ps.
 At a boost pressure of 200kPa, it delivers a maximum torque of 1380Nm (140kgf·m) at 5000rpm, and a maximum output of 827kW
(1215ps) at 6800rpm.
 The addition of a ported shroud helps to suppress surging, significantly improving throttle response and enhancing accelerator control
during circuit driving.

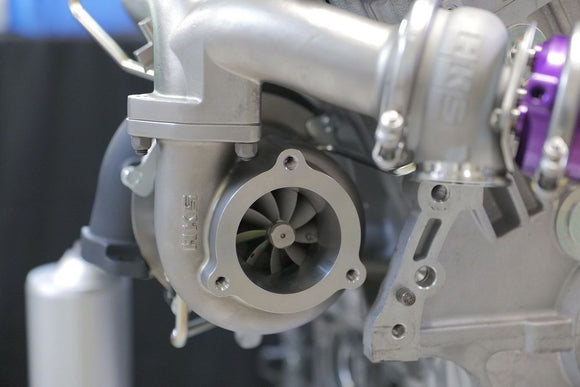

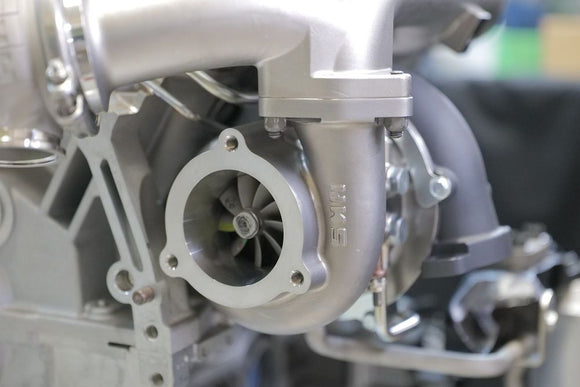

 The exhaust manifold and turbo housing are made from heat-resistant cast steel, ensuring excellent durability even under high-
temperature, high-vibration conditions.

In the GT1000 and GT1000+ kits, the system was designed for use in combination with the Racing Suction Kit (Part No. 70020-AN107).
However, for the Full Turbine Kit, a dedicated Suction Kit (Part No. 14021-AN001) is now offered as a separate option.
Note: The Full Turbine Kit does not include the Φ80–Φ70 air flow adapter.
If you plan to use it in combination with the Racing Suction Kit (70020-AN107), please make sure to purchase two units of the
air flow adapter separately:
•Product Name: Pipe Suction
•Part No.: G17811-N49080

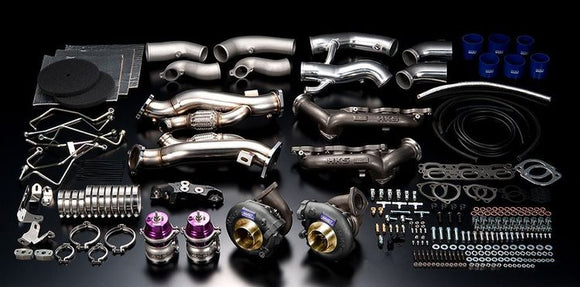

【Kit Components】

●Component Parts

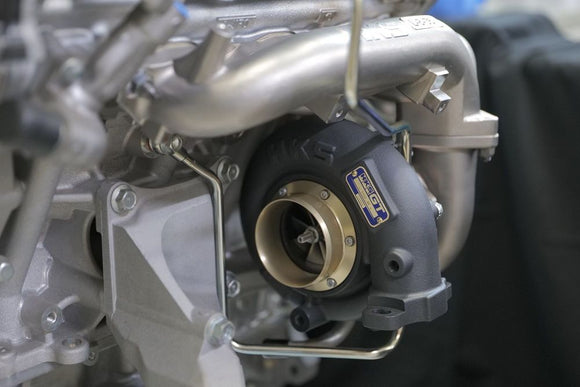

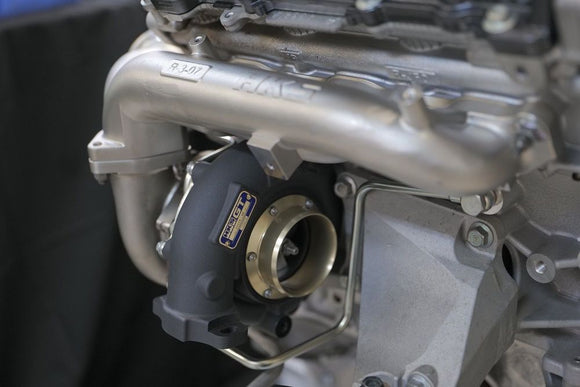

Turbine GT5565_BB/ GT5565R_BB

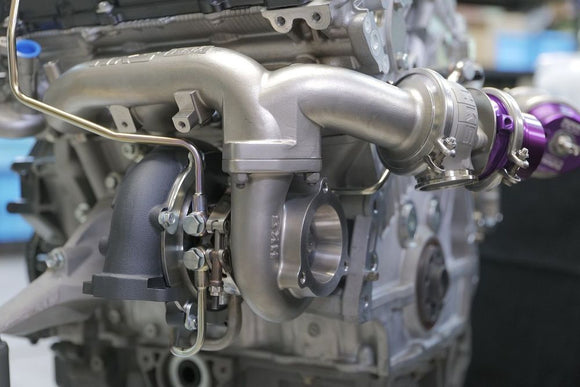

Exhaust Manifold Heat-resistant cast steel exhaust manifold with
an outlet inner diameter of 47mm
Wastegate GTII D50mm
Front Pipe SUS304 D70mm-D75mm
Suction Pipe Polished aluminum 70mm suction pipe
Note: Air flow adapter is not included.
Chamber Pipe Cast aluminum D60mm-D70mm
Others Replacement Engine Mount (Right Side)

【Precautions】
 This product does not include the TURBINE SUCTION KIT.
If required, please purchase it separately as TURBINE SUCTION KIT (Part No. 14021-AN001) or choose the
SPECIAL FULL TURBINE KIT (Part No. 11003-AN020), which includes it.
 Engine removal is required for installation.
 The following components are not included in the kit: Fuel pump, injectors, F-CON, EVC, and engine parts.
 The factory-set boost pressure of the wastegate is approximately 90–100kPa.
 Modification of the stock water pipe is necessary.
 Modification of the OEM turbocharger heat insulator is required.
 This is a competition-use-only product. We do not provide any warranty for engine, transmission, or other
damage resulting from the installation or use of this product.
 As this product is designed to remove the catalytic converter, the vehicle will no longer comply with Japanese
road safety regulations and cannot be driven on public roads.
 This product is not covered under dealer warranty.
 To achieve the full performance of this kit, please use the optional Power Flow Filter (gray, single-layer type),
sold separately.
 ※ This filter is designed for race and trial use only. Do not use it on public roads.

【Related Products】
FULL TURBINE KIT
GT5565_BB for R35 GT-R

Parts Product Name Code No. Remarks

Recommended
Parts

TURBINE SUCTION KIT 14021-AN001 Power Flow、D70mm suction、
D70mm Air Flow Adapter

CAPACITY UPGRADE KIT 4.3L STEP Pro
BCD 21004-AN024
CONROD BEARING ADUSTMENT VR43
STEP Pro 24998-AN004

Connecting rod bearing clearance
adjustment and chamfering
service
Available only when purchased
together with the 4.3L STEP Pro.

CRANK DAMPER PULLEY 24998-AN001
CAMSHAFT+VALVE SPRING SET 22002-AN038 Individual IN/EX set
FUEL PUMP UPGRADE 14007-AN003 Set of 2, 195 L/h per unit
HIGH-FLOW SURGE TANK FULL KIT 13008-AN003 Compatible with additional

injectors

INTERCOOLER KIT GT1000SPEC 13001-AN015 Part number 13002-AN004 is
required for installation
INTERCOOLER FULL PIPING KIT 13002-AN004 SQVIV Included

Replacement
Parts POWER FLOW GRAY SINGLE LAYER G04513-
K00410-00

Please avoid using on public
roads
