Golf R MK7 Turbo Charge Pipe

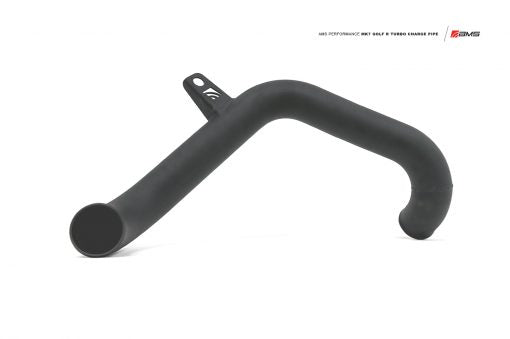

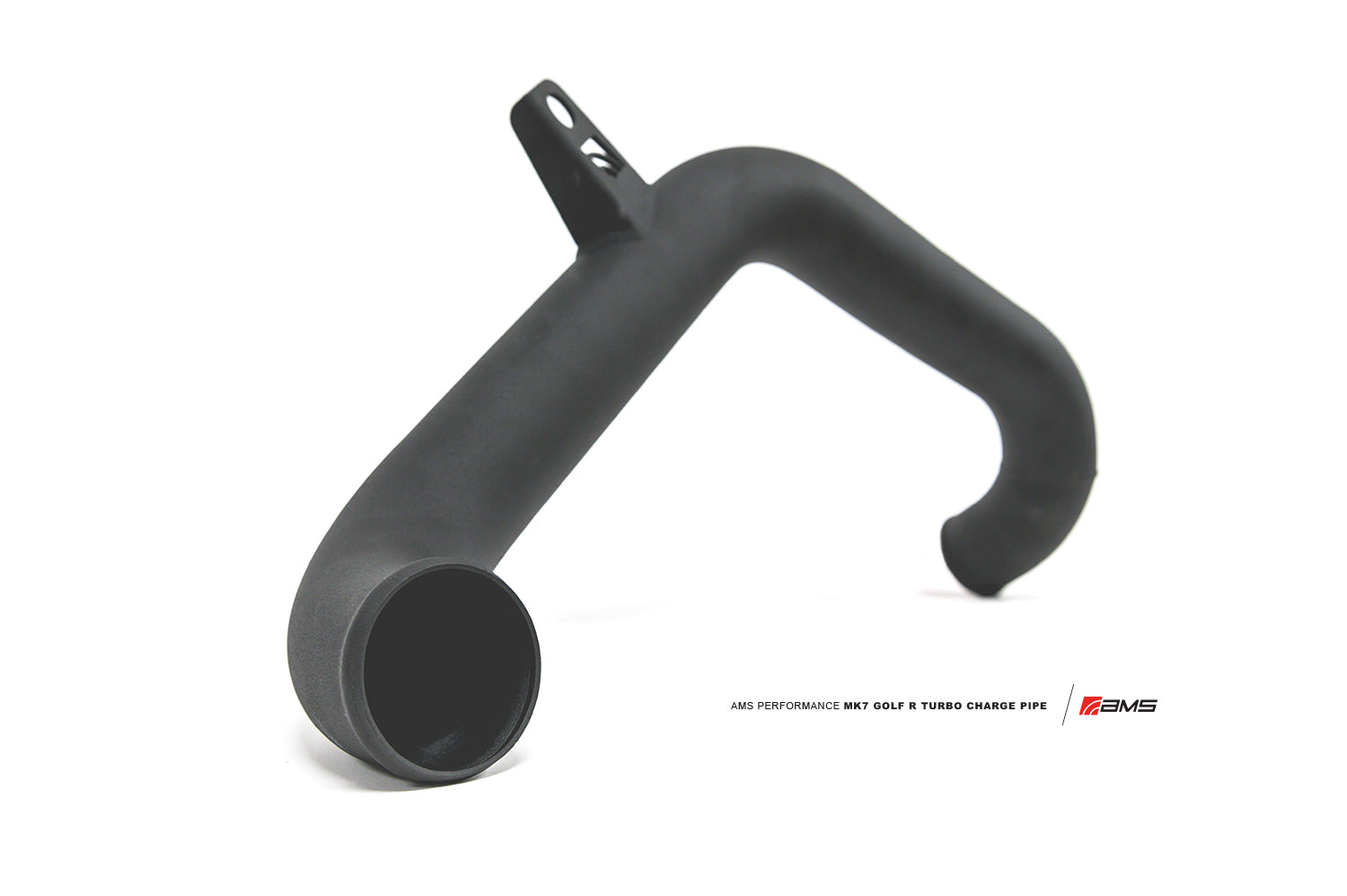

The AMS charge pipe’s one piece design with large radius bends, an 85% larger inlet, and almost 10% larger outlet removes the bottleneck in the charge air system. Our charge pipe is a complete bolt on kit that fits as good as the stock piece which means no cutting or trimming. The AMS charge pipe mates up perfectly to the AMS Golf R FMIC and future AMS turbo upgrade.

DESCRIPTION

Benefits

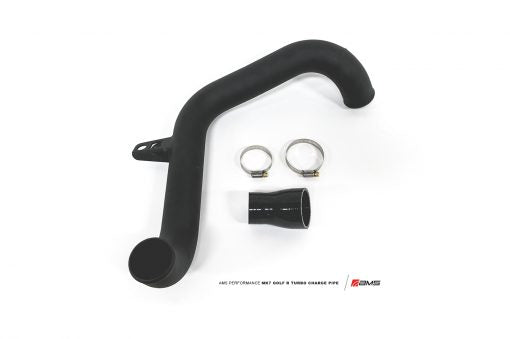

• Complete bolt on
• No cutting or trimming

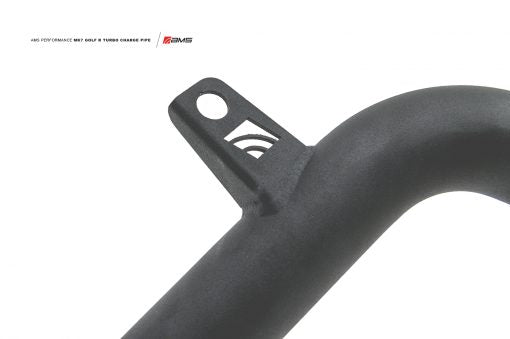

• Uses factory mounting location
• Outlet connects to both the factory silicone, as well as the AMS intercooler

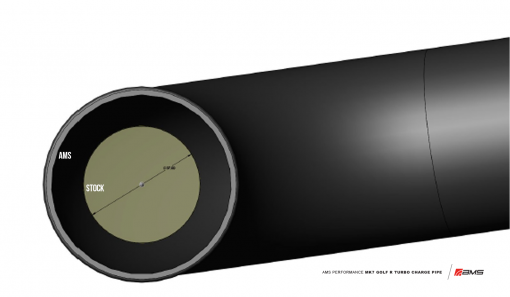

• AMS Charge pipe inlet is 20mm larger than the stock (85% larger)
• Stock charge pipe inlet is 37mm in diameter, AMS charge pipe is 57mm
• Stock charge pipe outlet is 53mm, AMS charge pipe is 57mm
• One piece tube with large radius bends to allow for better airflow
• AMS charge pipe is almost a half pound lighter than the stock charge pipe
• Comprehensive Installation Instructions can be found HERE

The AMS VW Golf R MK7 Turbo Charge Pipe

The AMS charge pipe’s one piece design with large radius bends, an 85% larger inlet, and almost 10% larger outlet removes the bottleneck in the charge air system. Our charge pipe is a complete bolt on kit that fits as good as the stock piece which means no cutting or trimming. The AMS charge pipe mates up perfectly to the AMS Golf R FMIC and future AMS turbo upgrade.

Platforms

Product Notes

• AMS charge pipe = 1.55 pounds
• Stock charge pipe = 1.95 pounds
• Comprehensive Installation Instructions can be found HERE
