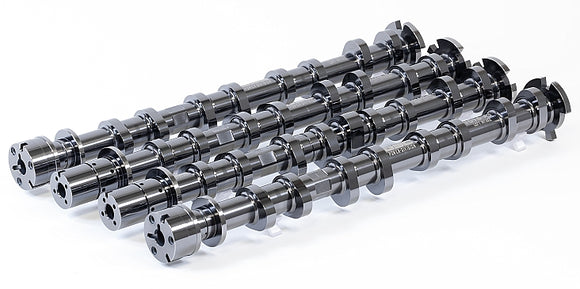

GSC R2 Camshafts – 5.0L Coyote Gen 3 (2018–2023 Mustang 5.0)

Ported-head race cams for Gen-3 Coyote. Optimized for high-flow setups; 5,800–8,500 rpm (≈8,100 peak). Spring upgrade required; DI/HPFP lobe retained; pump/race/E85–E90 ready.

Built for ported heads and real track work, the GSC R2 profile drives the Coyote hard to 8,100 rpm with a usable band from 5,800–8,500 rpm. Events are modeled for ported Gen 3 heads flow behavior and correct rocker geometry for high-flow combinations, then cut from our U.S.-made forged billet blanks and finished with BLACK ISE for reduced friction and long life. Runs on pump gas, race fuel, or ethanol blends (E85/E90). Direct Injection note: the high-pressure fuel pump (DI/HPFP) lobe is maintained to OEM specification—stroke and timing are retained for proper pump operation.

Highlights

• Profile intent: Ported head race profile; optimized for higher-flow combos and serious track use
• Fuel: Pump gas, race fuel, E85/E90
• Peak power: ~8,100 rpm · Powerband: 5,800–8,500 rpm
• Valve springs: Upgrade required (use GSC-matched springs; Ti retainers recommended)
• VCT: Tuner-managed phasing window recommended for best area under the curve
• DI fuel pump lobe: Maintains OEM lobe data for correct HPFP stroke/timing
• Manufacturing: MADE IN THE USA; forged from proprietary U.S.-sourced bearing-grade steel, BLACK ISE surface treatment, CNC to tighter-than-OEM tolerances
• Fitment: 2018–2023 Mustang GT 5.0L

Tuning & Install Notes

• Clearance: Always verify piston-to-valve clearance with your exact heads/pistons/gasket stack. With OEM pistons and deck heights, the full phaser range is typically usable without clearance issues.
• Use upgraded valve springs (and Ti retainers) set to the tuner’s rev limit; check installed height and coil bind.
• See install sheet for torque sequence and procedures; prime oiling and fuel (HPFP follower inspection) on reassembly.

Camshaft Specifications – GSC R2 (Gen 3 Coyote)
