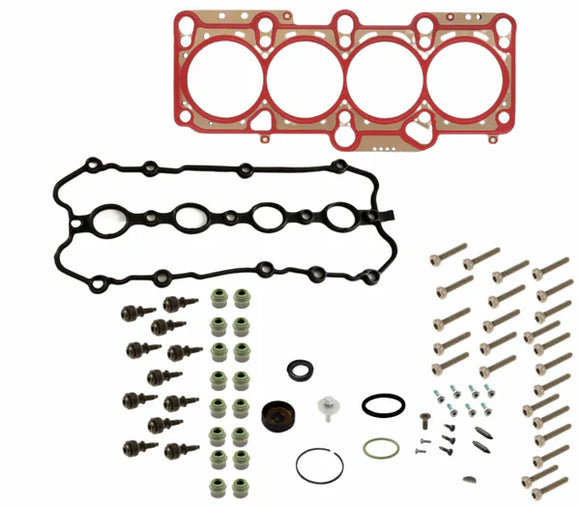

Head Gasket Set - VW/Audi 2.0T FSI | HGS-20TFSI

This kit provides everything you need to professionally service the head gasket on your 2.0T FSI.



Kit Includes:

(1) ARP Cam Tower Bolt Kit (ARP)
(23) Lower Timing Chain Tensioner / Valve Cover Torx Bolt (M6x35) (VW/Audi)
(1) ARP Head Stud Kit (ARP)
(1) Camshaft Seal for FSI / TSI Gen 1 and 2 (VW/Audi)
(1) Engine Camshaft Plug (VW/Audi)
(1) Head Gasket (VW/Audi)
(1) Camshaft Gear Bolt (VW/Audi)
(1) Camshaft Woodruff Key (VW/Audi)
(16) Valve Stem Seal 6mm (Elring)
(2) Camshaft Seal Front (VW/Audi)
(1) Cam Adjuster Valve Seal (VW/Audi)
(1) Valve Cover Gasket (VW/Audi)
(14) Valve Cover Screw (VW/Audi)
(1) Pressure Control Valve Gasket (VW/Audi)
(1) Exhaust Cam Sprocket Bolt M12x1.25x33 (VW/Audi)
(7) Hex Bolt (M6x20) (VW/Audi)
(1) Camshaft Adjustment Solenoid O-Ring (VW/Audi)
(2) Camshaft Adjuster Solenoid Bolt (M4x10) (VW/Audi)
(3) FSI chain tensioner hardware (VW/Audi)
(2) Camshaft Bridge to Head Dowel Pin (VW/Audi)
(1) Timing Cover Gasket (Victor Reinz)


OE & MFR Part #'s

ARP Cam Tower Bolt Kit

104-1001


Lower Timing Chain Tensioner / Valve Cover Torx Bolt (M6x35)

N10-554-005 / N10 554 005 / N10554005

N10-554-001 / N10 554 001 / N10554001


ARP Head Stud Kit

204-4302


Camshaft Seal

038-103-085-C / 038103085 C / 038 103 085 C / 038103085C

038-103-085-A / 038103085 A / 038 103 085 A / 038103085A


Mk6 GTI Engine Camshaft Plug

06B-103-113-C / 06B103113 C / 06B 103 113 C / 06B103113C

06E-103-113-A / 06E103113 A / 06E 103 113 A / 06E103113A


Head Gasket

06F-103-383-J / 06F103383 J / 06F 103 383 J / 06F103383J

06D-103-383-Q / 06D103383 Q / 06D 103 383 Q / 06D103383Q

06F-103-383-G / 06F103383 G / 06F 103 383 G / 06F103383G

06F-103-383-H / 06F103383 H / 06F 103 383 H / 06F103383H


Camshaft Gear Bolt

N90-987-902 / N90 987 902 / N90987902

N90-987-901 / N90 987 901 / N90987901


Mk5 GTI Camshaft Woodruff Key

N01-270-82 / N01 270 82 / N0127082

90-01-1-800-500 / 90 01 1 800 500 / 90011800500

N01-270-81 / N01 270 81 / N0127081


Valve Stem Seal 6mm

036-109-675-A / 036109675 A / 036 109 675 A / 036109675A

036-109-675-C / 036109675 C / 036 109 675 C / 036109675C

403.730


Camshaft Seal Front

06E-109-345-A / 06E109345 A / 06E 109 345 A / 06E109345A


Cam Adjuster Valve Seal

WHT-002-789 / WHT 002 789 / WHT002789


Valve Cover Gasket

06F-103-483-D / 06F103483 D / 06F 103 483 D / 06F103483D


Valve Cover Screw

06B-103-831-J / 06B103831 J / 06B 103 831 J / 06B103831J

06B-103-831-E / 06B103831 E / 06B 103 831 E / 06B103831E


Pressure Control Valve Gasket

06F-103-483-E / 06F103483 E / 06F 103 483 E / 06F103483E


Exhaust Cam Sprocket Bolt M12x1.25x33

06D-109-281-D / 06D109281 D / 06D 109 281 D / 06D109281D

6D1-092-81D / 6D1 092 81D / 6D109281D


Hex Bolt (M6x20)

N10-124-308 / N10 124 308 / N10124308

N10-124-307 / N10 124 307 / N10124307


Camshaft Adjustment Solenoid O-Ring

N10-691-601 / N10 691 601 / N10691601


Camshaft Adjuster Solenoid Bolt (M4x10)

N90-455-204 / N90 455 204 / N90455204

N90-455-205 / N90 455 205 / N90455205


FSI Chain Tensioner Hardware

N10-196-303 / N10 196 303 / N10196303


Camshaft Bridge to Head Dowel Pin

06D-103-251 / 06D 103 251 / 06D103251


Timing Cover Gasket

06D-103-121-B / 06D103121 B / 06D 103 121 B / 06D103121B
