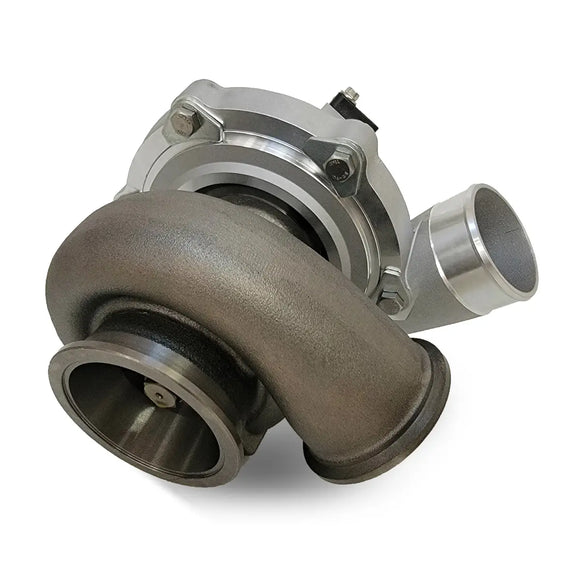

Hellion 62/62 V-Band Turbocharger

Hellion 62/62 V-Band Turbocharger

$1,574.99 CAD

Hellion SKU: HT-6262-VB

Description Features Availability

HT-6262-VB

The Hellion 6262 v-band turbo is the benchmark unit for our game changing sleeper turbo systems. These turbos feature a 62mm compressor wheel and industry standard journal bearing housing. The turbine has a 62mm exducer and uses a v-band inlet and 3″ v-band outlet housing. This unit comes standard with a 2-year warranty.

Description

  • 62mm compressor wheel.
  • 4” inlet / 2.5” outlet / .70 A/R compressor cover with and anti-surge ports standard.
  • 62mm turbine wheel.
  • Journal bearing center section.
  • Integrated speed sensor port.
  • V-Band inlet / 3″ v-band outlet / .82 A/R single scroll cast iron turbine housing.

Specifications

Max HP 700
Bearing Type Journal
Compressor Inducer (MM) 62
Ported Shroud Yes
Turbine Exducer (MM) 62
Turbine Inlet V-Band
Turbine Outlet V-Band
Turbine A/R 0.81
Turbine Scroll Single
