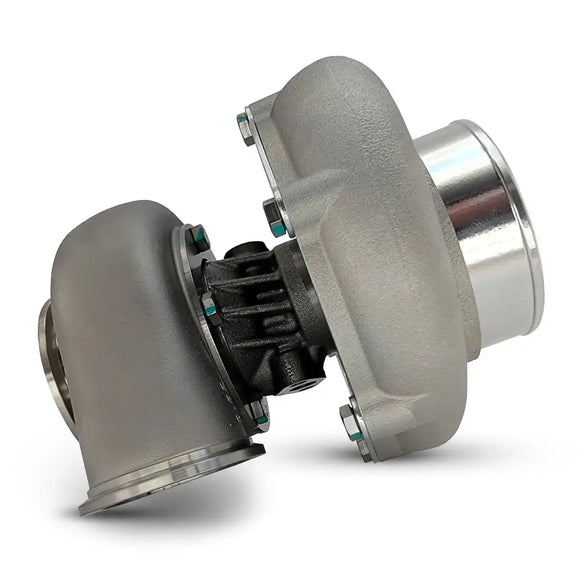

Hellion 64/66R V-Band Turbocharger

Hellion 64/66R V-Band Turbocharger

$3,084.99 CAD

Hellion SKU: HT-6466R-VB

Description R Series Compressor Features R Series Turbine Features Availability

HT-6466R-VB

This entire turbocharger package has been developed and designed for increased reliability while improving performance. This increased reliability allows us to deliver an extended 2-year warranty on all units.

Description

The next major leap in performance is finally here! Hellion has released the all new next generation of performance turbocharger with the R series. Constructed from the ground up, this lightweight compact-series turbocharger features an all-new quick spool (low drag) ceramic dual ball bearing. The refined air-cooled center section has the latest heat transfer resistance engineered into the assembly and is the most advanced bearing housing available today.

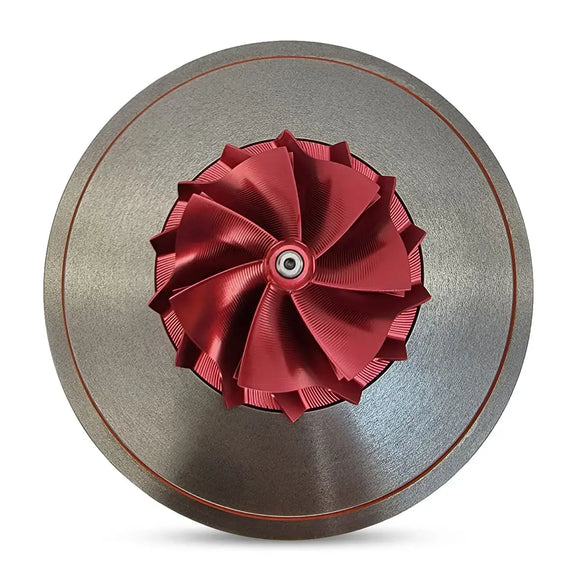

Hellion HT 6466R VBand 153722 selection web

  • Most advanced compressor wheel aerodynamics adding more blade swept area than other turbo of this size.

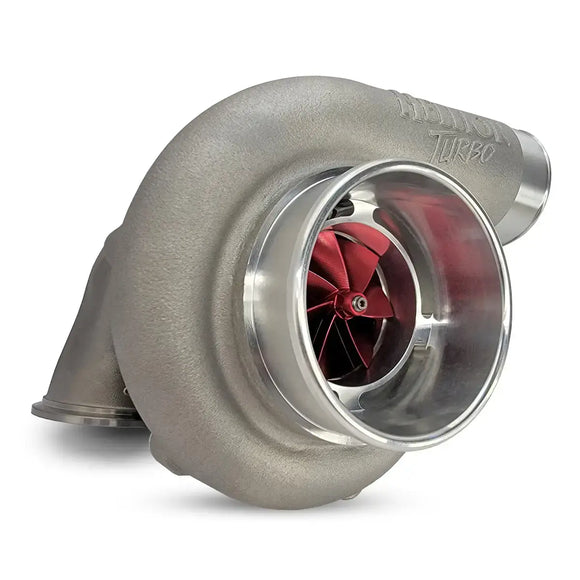

  • 4” inlet and 2.5” outlet compressor cover is modernized, enlarged and streamlined to efficiently process the increased flow. Easily interchanged with other common turbos of this frame size – with increased performance.
  • Integrated speed sensor port.

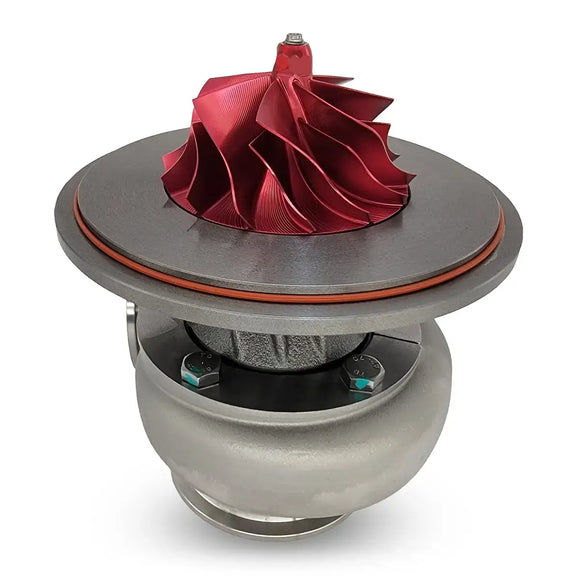

  • Modernized, more robust dual ball bearing air cooled iron bearing housing with integral backplate to resist compressor back plate deflection under heavy loads.

Hellion HT-5862R V-Band Inlet Turbocharger

  • Most advanced turbine wheel aerodynamics available.
  • Updated modern turbine wheel includes larger diameter dual turbine piston ring for improved oil and gas seal capability.
  • Incredibly strong shaft wheel weld joint for increased durability.
  • Improved housings to maximize the inlet and outlet exhaust flow.
  • .82 A/R  v-band inlet / 3″ v-band outlet single scroll turbine housing.
Max HP 945
Bearing Type Ball
Compressor Inducer (MM) 64
Ported Shroud Yes
Turbine Exducer (MM) 66
Turbine Inlet V-Band
Turbine Outlet V-Band
Turbine A/R 0.82
Turbine Scroll Single
