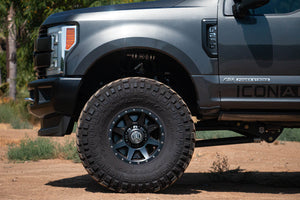

ICON 2005+ Ford Super Duty Rear Fixed Front Upper Links

164501 Overview
These upper links are an essential component of the ICON 2005-2022 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
Improves front end articulation and overall drivability
Allow on-vehicle caster adjustment via ICON double adjusters in lower links
Upper links are constructed from CNC machined 2” x .188” wall DOM steel tubing
PTFE lined FK spherical bearings eliminate deflection
Corrosion resistant semi-gloss black powder coat finish
Fabricated components covered under ICON's Limited Lifetime Warranty
Warranty
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103408798
Proxy Number 164501
Shipping Width 8.00 in
Shipping Length 47.00 in
Shipping Depth 4.00 in
Shipping Weight 37.0000 LB
Technical Notes
TECH NOTE: Only fits 2005-2022 Ford Super Duty 4WD models
TECH NOTE: Compatible with 2.5"-7" of front lift
TECH NOTE: Requires ICON 4-Link brackets depending on year range: part number 164500, 164503, or 164504, and ICON lower links, part number 164502, for complete installation.
