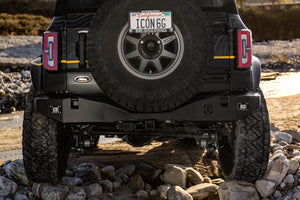

ICON 2021+ Ford Bronco Pro Series Rear Bumper

45202 Overview
Tackle the toughest trails with the ICON Impact Pro Series rear bumper for the Sixth Generation Ford Bronco. Designed for the ultimate in off-road form and function, Pro Series features a multi-faceted, high-clearance design for slipping past the tightest obstacles on the trail. This bumper is designed with the smallest form factor possible without cutting into the Bronco's frame rails and crossmember, ensuring great ground clearance and departure angles.
The integrated winch mount places the winch low and tight to the vehicle, allowing increased airflow through the radiator while preserving the Bronco's excellent approach angle. The winch fairlead mount is integrated right into the front surface of the bumper. If you do manage to get yourself into a tight spot, recovery is aided by a pair of extreme duty recovery shackle tabs, CNC machined from beefy 1" thick plate steel. Auxiliary off-road lights may be mounted using the threaded mounting holes in the top surface of the bumper, to either side of the winch recess.
The bumper comes with provisions to retain the Bronco's parking sensors (caps are provided for Broncos without sensors). A removable aluminum mesh panel promotes airflow through the Bronco's intercooler. The bumper is fabricated from CNC laser cut, precision brake-formed 3/16 plate steel. The bumper looks as great as it performs, with a durable, semi-gloss black powder coat finish.
Read more
Key Features
Bolts directly to factory points for maximum strength
Design provides light weight and maximum clearance on the trail
Faceted, high-clearance design to maximize approach angle and off-road performance
Parking sensors mount with included bezels or caps, for Broncos without sensors
Integrated soft shackle recovery points double as a lift point for a Hi-Lift jack
Works with the factory tow hitch
3/16" thick plate steel construction, CNC laser cut and brake-formed
Integrated light pockets accommodate two 2” flush mount LED lights
3/8" slots on the bottom of the bumper allow for additional LED lights to be mounted
Durable satin black powder coat finish
ICON Impact Series Limited Lifetime Warranty
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Impact Series Offroad Armor
UPC 840103414980
Proxy Number 45202
Shipping Width 25.00 in
Shipping Length 78.00 in
Shipping Depth 14.00 in
Shipping Weight 105.0000 LB
Technical Notes
TECH NOTE: License plate bracket provided, License plate relocation to the spare tire will require an aftermarket relocation kit (not included). ICON Impact license plate relocation kit coming soon!
Lighting accessories not included. Light pockets are compatible with common 2” flush mount LED lights.
TECH NOTE: Not compatible with Bronco Raptor
