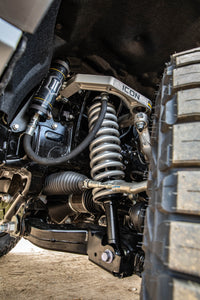

ICON 2024+ Toyota Tacoma Diff Drop Kit

55160 Overview
The ICON Vehicle Dynamics Front Differential Drop Kit for the 2024-2025 Toyota Tacoma 4WD, 2025 Toyota 4Runner 4WD, and 2024-2025 Toyota Land Cruiser 250 Series lowers the front differential in order to improve CV angles at full suspension droop and maximize the available front suspension travel and prevent CV bind when paired with ICON coilovers. Polyurethane mounting bushings replace the soft OE bushings to help limit differential movement under load. These brackets will endure the elements with their CNC laser cut steel construction with a semi-gloss black powder coat finish for corrosion resistance.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Vehicle specific design for 2024-2025 Toyota Tacoma, 2025 Toyota 4Runner, and 2024-2025 Toyota Land Cruiser 250 Series
Drops front differential to provide better maximum operating angle for CV joints
Maximizes available suspension travel when paired with ICON coilovers
CNC laser cut, precision brake-formed steel bracketry with durable black powder coat finish
Polyurethane bushings limit deflection and prevent differential movement under load
100% Bolt-on with no cutting or welding necessary for installation
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103428789
Proxy Number 55160
Shipping Width 6.00 in
Shipping Length 14.00 in
Shipping Depth 4.00 in
Shipping Weight 6.0000 LB
Technical Notes
TECH NOTE: Compatible with all 2024-2025 Toyota Tacoma 4WD, all 2024-2025 Land Cruiser 250 Series, and all 2025 4Runner 4WD submodels. Required for installation of ICON coilover kits on 2024-2025 Toyota Tacoma 4WD, 2024-2025 Land Cruiser 250 Series, and 2025 4Runner 4WD models.
