ICON 2005+ Toyota Tacoma Rear Hyd Bump Stop Kit

56103 Overview

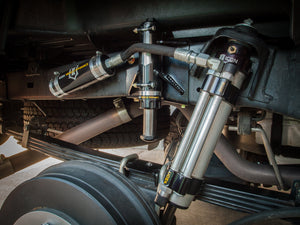

Bolt on a set of ICON Vehicle Dynamics rear hydraulic air bumpstops to improve the on or off-road capabilities of your 2005-2023 Toyota Tacoma when using maximum suspension travel. ICON’s race proven hydraulic air bumpstops are tested, tried and true, from Cabo to Canada in all conditions. This vehicle specific tuned hydraulic air bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return while being used in extreme conditions. The true value to using a compression and rebound tuned bumpstop is the exponentially increasing force is smooth, not abrupt or harsh like the OEM bumpstop.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Bolt-on design using existing holes in frame for clean install with no cutting or welding
Industry only Toyota Tacoma specific tune to maximize bottom out resistance while having smooth engagement as well as return
Absorbs additional impact energy over the OEM rubber bumpstop and returns the axle in a more controlled manner
Industry only kit allowing adjustment for leaf pack height changes so uptravel is not lost
Can be returned to stock
Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
Anodized billet top cap, o-ring sealed back up cap, seal head and striker
CAD Plated body for corrosion free service
Urethane rod seal and wiper for long service life
User serviceable
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103402956
Proxy Number 56103
Shipping Width 12.00 in
Shipping Length 16.00 in
Shipping Depth 8.00 in
Shipping Weight 22.0000 LB
Technical Notes
TECH NOTE: Not compatible with 2005-2015 5-lug RWD Tacoma models
