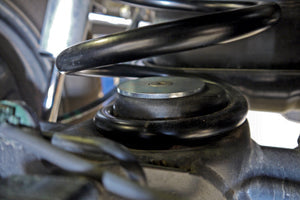

ICON 2007+ Toyota FJ / 2003+ Toyota 4Runner Rear Air Bump Kit

56104 Overview
ICON Vehicle Dynamics now offers a bolt-in hydraulic bump stop Kit for the 2007-2014 Toyota FJ Cruiser AND 2003-2024 4Runner. This kit reduces rear-end “kick” and helps to improve the overall off-road performance of the vehicle. The OEM rubber bumpstops have a limited energy absorption capacity that is released rather uncontrollably upon rebound, resulting in a harsh ride and ill-handling vehicle in rough terrain. The ICON hydraulic bump stops are velocity sensitive which means that the amount of energy absorbed increases the faster they are engaged, so those harsh g-outs and square edges are less likely to interrupt your off-road adventures. Vehicles equipped with the ICON hydraulic bumpstop kit will have an increased bottom-out resistance over stock, as well as an improved drivability off-road. This kit installs easily inside the coil, and the bumpstops are fully rebuildable with the ability to be tuned for a custom ride. With a simple installation, proven effectiveness, and no loss in travel there is no reason not to bolt up the ICON Vehicle Dynamics hydraulic bumpstop kit to your ride and experience the difference.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Hydraulic / pneumatic bumpstop increases bump energy capacity
Velocity sensitive bumpstop increases the amount of energy absorbed the faster it is hit
Reduces rear end kick and improves overall performance
Increased bottom resistance over stock
No loss in travel
Easy installation inside coil
Pre-tuned for most users
Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
CAD Plated body for corrosion free service
Urethane rod seal and wiper for long service life
User serviceable
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103402963
Proxy Number 56104
Shipping Width 10.00 in
Shipping Length 10.00 in
Shipping Depth 4.00 in
Shipping Weight 14.0000 LB
Technical Notes
TECH NOTE: Vehicles equipped with factory rear air suspension require rear coil conversion, ICON part number 56110, and ICON rear coil springs, ICON part number 52700 or 52800
