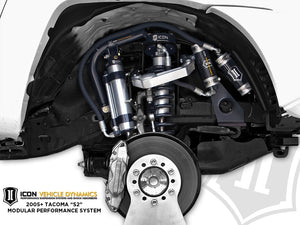

ICON S2 Front 2.5 Omega Series Shocks RR - Pair

59906P Overview
ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
Bypass tubes are replaceable in the event of damage
Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103404776
Proxy Number 59906
Shipping Width 15.00 in
Shipping Length 39.00 in
Shipping Depth 9.00 in
Shipping Weight 33.0000 LB
Technical Notes
TECH NOTE: Fits ICON S2 Secondary Shock System only. May not fit other aftermarket stock width front lower control arm kits with secondary shock compatibility and matching secondary shock hoop.
TECH NOTE: Will not fit KDSS equipped Lexus GX470s
