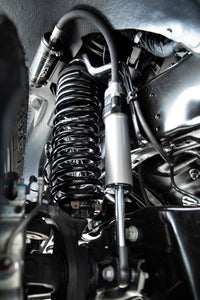

ICON 23 Ford F250/350 Front 2.5in. Gas Dual Rate Spring Kit

62513 Overview
The ICON Vehicle Dynamics 2023 F-250 and F-350 Super Duty 2.5" coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON Ford Super Duty coil springs provide 2.5" of lift height and feature a dual rate design optimized for use with trucks equipped with gasoline engines. The dual rate design allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Caster correction cams are also included to ensure proper caster angle with the new, taller ride height. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2023 Super Duty.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
2.5" lift height
Dual rate coil springs improve on and off-road ride quality over stock
Dual-stage, semi-gloss powder coat offers excellent corrosion resistance
Caster cam kit included for ideal caster angles with ride height increase
100% bolt-on system makes for an easy install
Lifetime warranty against sagging/breakage
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103426358
Proxy Number 62513
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 65.0000 LB
Technical Notes
Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #1: Only fits 4WD models
APPLICATION NOTE #30: An adjustable track bar may be needed to realign the axle from left to right, or to add additional atrength
APPLICATION NOTE #119: Rare cases require a 2.6 degree alignment cam on one side of vehicle for proper caster split
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #156: Springs are rated for gasoline engines only
APPLICATION NOTE #157: Lift heights based on 4WD crew cab gas
TECH NOTE: Models equipped with Tremor package will have front lift height of 1.5" over stock
TECH NOTE: Not compatible with F-450 or F-550
TECH NOTE: Will not fit 2024 models
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
