ICON 03-12 Dodge Ram 2500/3500 4WD 2.5in Stage 1 Suspension System

K212501 Overview
2003-2012 Ram 2500/3500 2.5 Inch Stage 1 Suspension System is ICON's entry level system. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 1 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar drop brackets, and ICON 2.0 Aluminum Series internal reservoir shocks. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
Increased wheel travel and ride quality over stock with no change in towing capacity
Level stance front to rear
Less body roll than stock
No drive shaft modifications needed
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103415185
Proxy Number 212501
Shipping Width 19.00 in
Shipping Length 26.00 in
Shipping Depth 10.00 in
Shipping Weight 96.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in Multiple Boxes

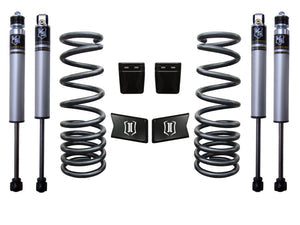

System Components
212500 (qty: 1) | 03-12 RAM HD 4WD 2.5" DUAL RATE SPRING KIT
216521 (qty: 2) | 03-12 RAM HD 2.5" FRONT 2.0 VS IR
216522 (qty: 2) | 03-12 RAM HD 0-3" REAR 2.0 VS IR
