ICON 03-12 Dodge Ram 2500/3500 4WD 2.5in Stage 2 Suspension System

K212502 Overview
2003-2012 Ram 2500/3500 2.5 Inch Stage 2 Suspension System is our performance system for the novice off road enthusiast. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 2 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar, 2.0 Aluminum Series remote reservoir shocks, and our bearing style adjustable track bar. Remote reservoir shocks will extend performance of the kit by increasing the duration of consistent damping regardless of situation. The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. This performance system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series remote reservoir shocks
Adjustable track bar with PTFE lined FK bearings
Increased wheel travel and ride quality over stock with no change in towing capacity
Level stance front to rear
Less body roll than stock
No drive shaft modifications needed
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103415192
Proxy Number 212502
Shipping Width 19.00 in
Shipping Length 26.00 in
Shipping Depth 10.00 in
Shipping Weight 129.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in Multiple Boxes

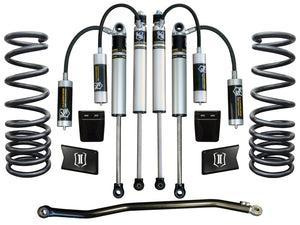

System Components
212500 (qty: 1) | 03-12 RAM HD 4WD 2.5" DUAL RATE SPRING KIT
214030 (qty: 1) | 03-12 RAM HD ADJ TRACK BAR KIT
216521R (qty: 2) | 03-12 RAM HD 2.5" FRONT 2.0 VS RR
216522R (qty: 2) | 03-12 RAM HD 0-3" REAR 2.0 VS RR
