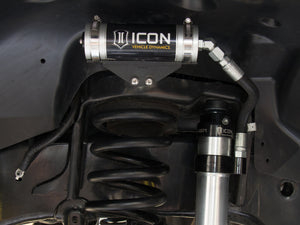

ICON 14+ Ram 2500 4WD 2.5in Stage 4 Suspension System

K212544P Overview
ICON's 2014-UP Ram 2500 4WD 2.5” Stage 4 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, front and rear adjustable track bars, as well as 2.5 Aluminum Series reservoir front and rear shocks with CDCV. This system improves ride quality and performance both on and off-road. The ICON stage 4 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON 2.5" reservoir shocks with CDCV ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally. An adjustable track bar with FK bearings is used to not only improve rigidity over the flexible factory joints, but offer adjustability to center the front axle under the truck. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series reservoir shocks
Increased wheel travel and ride quality over stock with no change in towing capacity
Adjustable track bars with PTFE lined FK bearings
Less body roll than stock
No driveshaft modifications needed
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103415338
Proxy Number 212544
Shipping Width 19.00 in
Shipping Length 26.00 in
Shipping Depth 10.00 in
Shipping Weight 218.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #99: Performance Rear Springs May Cause Reduced Ride Height While Towing
APPLICATION NOTE #105: Not For Vehicles With Rear Factory Air Ride
Ships in Multiple Boxes
System Components
214200 (qty: 1) | 14-UP RAM 2500 2.5" FRONT DUAL RATE SPRING KIT
214214 (qty: 1) | 14-UP RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT
214204 (qty: 1) | 14-UP RAM 2500 REAR ADJUSTABLE TRACK BAR KIT
214206 (qty: 1) | 14-UP RAM 2500 .5" REAR PERFORMANCE SPRING KIT
217802CP (qty: 1) | 14-UP RAM 2500 2.5" FRONT 2.5 VS RR CDCV PAIR
217705CP (qty: 1) | 14-UP RAM 2500 .5" PERFORMANCE REAR 2.5 VS PB CDCV PAIR
