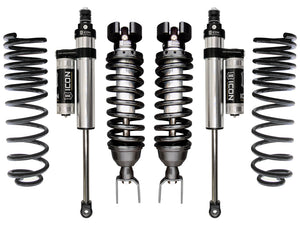

ICON 2019+ Ram 1500 2/4WD .75-2.5in Stage 3 Suspension System

K213103 Overview
With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON’s R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
Rear 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
FK rod end bearings for extended longevity and minimal deflection
Fits 2WD & 4WD applications
6061 Aircraft grade aluminum CNC machined components
Shocks are fully rebuildable and revalvable
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103415413
Proxy Number 213103
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 112.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #99: Air Bags Recommended With Performance Rear Springs If Vehicle Used For Towing
APPLICATION NOTE #100: Springs Not Rated For Eco Diesel Equipped Trucks
APPLICATION NOTE #105: Not For Vehicles With Rear Factory Air Ride
Ships in Multiple Boxes
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
TECH NOTE: 2019-Up Ram Rebel lift height range 0-.75" over stock (front) and 1" over stock (rear)
TECH NOTE: Not compatible with 2019-2022 Ram 1500 Classic models
TECH NOTE: Not compatible with 2021-UP Ram 1500 TRX trim
System Components
211000 (qty: 1) | 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT
212150 (qty: 1) | 09-23 RAM 1500 REAR 1.5" DUAL RATE SPRING KIT
217716P (qty: 1) | 19-23 RAM 1500 0-3" REAR 2.5 VS PB PAIR
