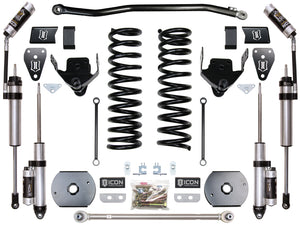

ICON 2014+ Ram 2500 4WD 4.5in Stage 3 Suspension System

K214523 Overview
ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock with no change in towing capacity
Decreased body roll
Level stance from front to rear of vehicle
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
Vehicle specific tuned front and rear 2.5 Series shocks provide superior damping and ride quality
2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103415611
Proxy Number 214523
Shipping Width 19.00 in
Shipping Length 26.00 in
Shipping Depth 10.00 in
Shipping Weight 222.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #90: May Not Be Compatible With Other Manufacturers Aftermarket Trackbars
APPLICATION NOTE #103: Vehicles Equipped With 2 Piece Driveshafts Require Carrier Shim Kit 214211
APPLICATION NOTE #105: Not For Vehicles With Rear Factory Air Ride
Ships in Multiple Boxes
System Components
214201 (qty: 1) | 14-UP RAM 2500 4.5" FRONT DUAL RATE SPRING KIT
214214 (qty: 1) | 14-UP RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT
214204 (qty: 1) | 14-UP RAM 2500 REAR ADJUSTABLE TRACK BAR KIT
214205 (qty: 1) | 14-UP RAM 2500 4.5" BOX KIT
217803CP (qty: 1) | 14-UP RAM 2500 4.5" FRONT 2.5 VS RR CDCV PAIR
217707CP (qty: 1) | 14-UP RAM 2500 2" STANDARD REAR 2.5 VS PB CDCV PAIR
