ICON 09-12 Ram 2500/3500 4.5in Stage 5 Suspension System

K214554T Overview

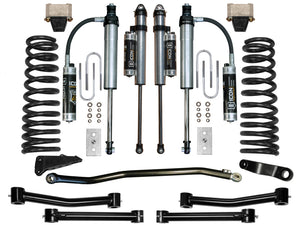

2009-2012 Ram 2500/3500 4.5" Stage 5 Suspension System utilizes the same technology as the 2.5" systems while adding lift height, ground clearance, and user adjustability. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 5 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5 Aluminum Series shocks w/ CDCV, and bearing style adjustable track bar. ICON 2.5 Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation, and give you the ability to tune the compression damping with the turn of an external knob. These shocks include FK bearings, one-piece impact extruded aluminum cylinders, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This ultimate performance system with billet link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
ICON engineered dual rate coil springs with match tuned 2.5" V.S. Series shocks with CDCV
Adjustable track bar with PTFE lined FK bearings
2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Heavy-duty steel upper and lower link bars
Increased wheel travel and ride quality over stock with no change in towing capacity
Correctly positioned steering and track bar components
Level stance front to rear
Less body roll than stock
No drive shaft modifications needed
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103415710
Proxy Number 214554
Shipping Width 19.00 in
Shipping Length 26.00 in
Shipping Depth 10.00 in
Shipping Weight 277.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #101: Call ICON For 2013 Ram 2500/3500 Vehicles
Ships in Multiple Boxes
System Components
214010 (qty: 1) | 03-12 RAM HD 4WD 4.5" DUAL RATE SPRING KIT
214101 (qty: 1) | 09-12 RAM HD DROP PITMAN ARM
214040 (qty: 1) | 03-12 RAM HD 4.5" BOX KIT
214027 (qty: 1) | 03-12 RAM HD FIXED TUBULAR LINK KIT
214030 (qty: 1) | 03-12 RAM HD ADJ TRACK BAR KIT
211205 (qty: 1) | 03-12 RAM HD 4WD 2.5" BLOCK KIT
37023 (qty: 1) | 99-10 FSD DUALLY/03-12 RAM HD 15" U-BOLT KIT
217810CP (qty: 1) | 03-12 RAM HD 4.5" FRONT 2.5 VS RR CDCV PAIR
217701CP (qty: 1) | 03-12 RAM HD 2-3" REAR 2.5 VS PB CDCV PAIR
