ICON 2018+ Jeep Wrangler JL 2.5in Stage 5 Suspension System

K22015 Overview

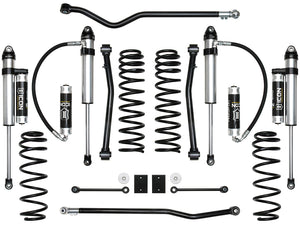

The ICON Vehicle Dynamics Stage 5 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 5 system includes 2.5" lift dual rate coil springs, upgraded 2.5 Aluminum Series shocks with vehicle specific valving, tubular steel front lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The Stage 5 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
2.5" lift height
Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
3" front, 2" rear increase in wheel travel
Improves on and off-road ride quality over stock
Dual rate coil springs with lifetime guarantee against sagging/breakage
2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
100% bolt-on system makes for an easy install
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103415819
Proxy Number 22015
Shipping Width 13.00 in
Shipping Length 22.00 in
Shipping Depth 8.00 in
Shipping Weight 131.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22029)
APPLICATION NOTE #66: 2 Door Models Sit Slightly Higher Than 4 Door Models But Remain Level When Installed
APPLICATION NOTE #150: Shocks Are Fully Serviceable
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JL build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine. Not compatible with 3.6L V6 eTorque engine.
Ships In Multiple Boxes
System Components
22021 (qty: 1) | 18-23 JL/20-23 JT FRONT FIXED LOWER LINK KIT
22025 (qty: 1) | 18-23 JL 2.5"/20-23 JT 2" FRONT DUAL RATE SPRING KIT
22026 (qty: 1) | 18-23 JL 2.5" REAR DUAL RATE SPRING KIT
22027 (qty: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
22028 (qty: 1) | 18-UP JL REAR ADJ TRACK BAR KIT
27821P (qty: 1) | 20-23 JT/18-23 JL 2.5" FRONT 2.5 VS RR PAIR
27726P (qty: 1) | 18-23 JL 2.5" REAR 2.5 VS PB PAIR
