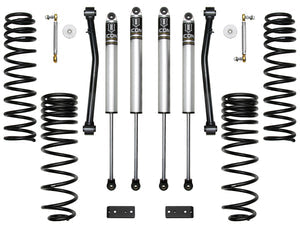

ICON 2020+ Jeep Gladiator JT 2.5in Stage 3 Suspension System

K22103 Overview
The Stage 3 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving on-road ride quality for the daily driven application that will see occasional moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
2.5" lift height
Fits 35" tires (37" with extended bump stop spacer kit)
33% front, 23% rear increase in wheel travel
Improves on and off-road ride quality over stock
Front lower links included for caster angle correction and improved front end articualtion
Dual rate front coil springs with lifetime guarantee against sagging/breakage
Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
2.0 Aluminum Series shocks with vehicle specific valving
Adjustable, billet aluminum front sway bar links
100% bolt-on system makes for an easy install
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103415871
Proxy Number 22103
Shipping Width 13.00 in
Shipping Length 21.00 in
Shipping Depth 7.00 in
Shipping Weight 95.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #127: Will Not Fit Gladiator Mojave Trim
APPLICATION NOTE #150: Shocks Are Fully Serviceable
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
Ships In Multiple Boxes
System Components
22021 (qty: 1) | 18-23 JL/20-23 JT FRONT FIXED LOWER LINK KIT
22025 (qty: 1) | 18-23 JL 2.5"/20-23 JT 2" FRONT DUAL RATE SPRING KIT
22066 (qty: 1) | 20-UP JT 1.5" REAR MULTI RATE SPRING KIT
22061 (qty: 1) | 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
22062 (qty: 1) | 20-UP JT REAR SWAY BAR RELOCATION KIT
26523 (qty: 2) | 18-UP JL/20-UP JT 2.5" FRONT 2.0 VS IR
26527 (qty: 2) | 20-UP JT 2.5" REAR 2.0 VS IR
