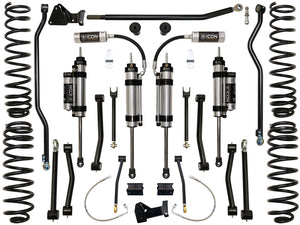

ICON 07-18 Jeep Wrangler JK 4.5in Stage 5 Suspension System

K24005 Overview
ICON’s 4.5” Jeep JK Performance Suspension Systems aims to strike a perfect balance between wheel travel, articulation, ground clearance, and precise on and off-road handling characteristics. With these goals met, ICON-equipped JK’s can take on rolling desert whoops, crawl over obstacle-riddled trails, and drive back home in comfort all in the same day. One of the major benefits of the ICON 4.5” JK system (or any ICON system) is that they are comprehensive suspension solutions, not just “lift kits”. As a complete manufacturer ICON is able to engineer & create shock absorbers, coil springs, link arms, track bars, and all associated parts to work in conjunction with each other and extract maximum performance out of the Jeep JK.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Dual-rate coil springs front and rear guaranteed never to sag
High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
All links and track bars utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
Track bars are on vehicle adjustable designed for optimizing axle postion
Includes high-performance rebuildable and revalvable reservoir 2.5 Series shocks w/ CDCV
Easy to operate compression adjuster for user shock tune-ability front and rear
Increased wheel travel and articulation over stock
100% returnable to stock
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103416007
Proxy Number 24005
Shipping Width 13.00 in
Shipping Length 21.00 in
Shipping Depth 7.00 in
Shipping Weight 269.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
APPLICATION NOTE #62: Front Driveshaft Can Hit Certain Model Skid Plates At Full Droop And May Need To Be Trimmed For Full Articulation
APPLICATION NOTE #66: 2 Door Models Sit Slightly Higher Than 4 Door Models But Remain Level When Installed
APPLICATION NOTE #80: Front Drive Shaft Required For Proper Front Driveline Clearance (ICON Part #22014 [12-Up] / #22016 [07-11]
APPLICATION NOTE #123: May Require Rear Alignment Cam Kit
APPLICATION NOTE #150: Shocks Are Fully Serviceable
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
Ships In Multiple Boxes
System Components
24010 (qty: 1) | 07-18 JK FRONT 4.5" DUAL-RATE SPRING KIT
24015 (qty: 1) | 07-18 JK REAR 4.5" DUAL- RATE SPRING KIT
21010 (qty: 1) | 07-18 JK FRONT 4.5" BOX KIT
21000 (qty: 1) | 07-18 JK REAR 4.5" BOX KIT
21020 (qty: 1) | 07-18 JK FRONT ADJ TRACK BAR KIT
21025 (qty: 1) | 07-18 JK REAR ADJ TRACK BAR KIT
21031 (qty: 1) | 07-18 JK FRONT LOWER FIXED LINK KIT
21036 (qty: 1) | 07-18 JK FRONT UPPER ADJ LINK KIT
21041 (qty: 1) | 07-18 JK REAR LOWER ADJ LINK KIT
21046 (qty: 1) | 07-18 JK REAR UPPER FIXED LINK KIT
29940P (qty: 1) | 07-18 JK 4.5" FRONT 2.5 OMEGA VS RR PAIR
29945P (qty: 1) | 07-18 JK 4.5" REAR 2.5 OMEGA VS PB PAIR
