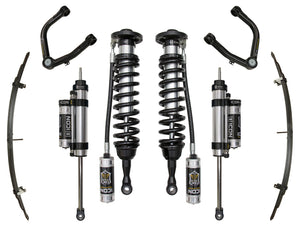

ICON 2007+ Toyota Tundra 1-3in Stage 7 Suspension System w/Tubular Uca

K53027T Overview
ICON Vehicle Dynamics Toyota Tundra Stage 7 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 7 system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and includes our CDCV 10-way adjustable compression valve. These coilovers are also height adjustable from 1-3” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 VS Omega Series rear shocks utilize our Compression and Rebound tuning to make your suspension tunable in the rear. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Stage 7 suspension system is an excellent choice for those drivers looking to tune the capabilities of their pickup on the road as well as in the dirt.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock with no change in towing capacity
CDC tuned front shocks for a custom tuneable ride
Adjustable coilovers from 1-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK rod end bearings for extended longevity and minimal deflection
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Rear expansion pack for 1.5” of lift and better ride quality
100% Bolt-on system - no cutting or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103416694
Proxy Number 53027
Shipping Width 13.00 in
Shipping Length 31.00 in
Shipping Depth 7.00 in
Shipping Weight 188.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #43: 07-Up Tundra Tubular Upper Control Arm Is Not Compatible With All Subframe-Drop Lift Kits. For Adjustability Purposes These Kits May Require The Use Of Billet Upper Control Arm (Part #58560Dj).
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
APPLICATION NOTE #122: Not Compatible With Rear Trd Sway Bar Kit
Ships in Multiple Boxes
System Components
58750C (qty: 1) | 07-21 TUNDRA/08-22 SEQUOIA 2.5 VS RR CDCV COILOVER KIT
58460DJ (qty: 1) | 07-21 TUNDRA/08-22 SEQUOIA TUBULAR UCA DJ KIT
51200 (qty: 1) | 07-21 TUNDRA REAR EXPANSION PACK KIT
59920P (qty: 1) | 07-21 TUNDRA REAR 2.5 VS OMEGA PB PAIR
