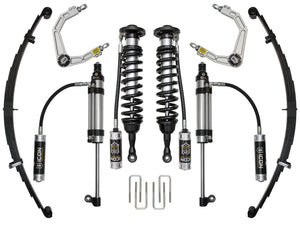

ICON 2007+ Toyota Tundra 1-3in Stage 10 Suspension System w/Billet Uca

K53030 Overview
ICON Vehicle Dynamics 2007-2021 Toyota Tundra suspension systems are designed with maximum performance and the serious driver in mind. Throughout the development of these systems ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 10 system goes a step further in delivering ICON performance to the Tundra with the addition of rear suspension components that include an ICON RXT multi-rate leaf spring and a unique RXT-specific 2.5 Aluminum Series shock.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock
10” aluminum reservoirs in RXT shocks provide generous oil and nitrogen volume for consistent damping as shock temperature increases
Vehicle-specific tuned front and rear shocks for superior shock damping and control
CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
Adjustable coilovers provide 1-3" of front lift height
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
2.5 Aluminum Series RXT rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
FK Rod End bearings for extended longevity and minimal deflection
Shocks are fully rebuildable and revalveable
Bolt-on system means no cutting or welding necessary for install
3 user-adjustable rear leaf spring rates for unique vehicle configurations
Military wrap front leaf spring eyelets for increased durability
Galvanized leaf separators reduce friction and aid in corrosion resistance
Leaf spring tip inserts reduce noise and increase ride comfort
Increased wheel travel when used with RXT shock without sacrificing up-travel
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103416748
Proxy Number 53030
Shipping Width 48.00 in
Shipping Length 48.00 in
Shipping Depth 20.00 in
Shipping Weight 295.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #87: Installation Of Complete ICON System Required To Attain Advertised Wheel Travel. Use Of Any Other Manufacturers Components Will Not Provide Advertised Wheel Travel And Could Cause Unknown Damage.
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
TECH NOTE: Not compatible with TRD rear sway bar kit
Ships in multiple boxes
System Components
58750C (qty: 1) | 07-21 TUNDRA/08-22 SEQUOIA 2.5 VS RR CDCV COILOVER KIT
58560DJ (qty: 1) | 07-21 TUNDRA/08-22 SEQUOIA BILLET UCA DJ KIT
158509 (qty: 2) | 07-21 TUNDRA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
52050 (qty: 1) | TOYOTA REAR 8.0" U-BOLT KIT
59923P (qty: 1) | 07-21 TUNDRA RXT REAR 2.5 OMEGA RR PAIR
