ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 2 Suspension System w/Tubular Uca

K53052T Overview
This ICON Stage 2 suspension system for the 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser uses the same components as the Stage 1 system with a few simple changes and additions. The 2.5 Series coilover shocks used in this system are the Extended Travel version, offering increased wheel travel that will enhance your on and off-road performance even more so than the standard travel units. Since these shocks do provide more suspension travel, they require the use of an ICON upper control arm.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers provide 0-3.5" of front lift height
Extended Travel coilovers matched with ICON UCA provides increased front droop travel
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series rear internal reservoir shocks with 5/8" shafts
Bolt-on system means no cutting or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103416816
Proxy Number 53052
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 105.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes

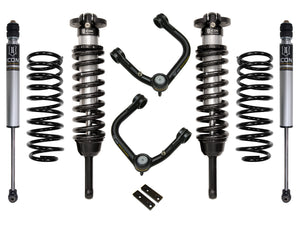

System Components
58645 (qty: 1) | 07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL 2.5 VS IR COILOVER KIT
58451DJ (qty: 1) | 07-14 FJ/03-24 4RNR/03-23 GX TUBULAR UCA DJ KIT
52700 (qty: 1) | 07-14 FJ/03-24 4RNR/03-23 GX REAR 2" SPRING KIT
56505 (qty: 2) | 07-14 FJ/03-24 4RNR/03-23 GX 1-3" REAR 2.0 VS IR
