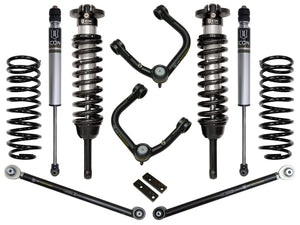

ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 3 Suspension System w/Tubular Uca

K53053T Overview
The Stage 3 suspension system for the 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser includes the components found in the Stage 2 system along with an ICON Tubular Steel Rear Lower Link kit. Extended travel ICON 2.5 Series coilover shocks and a tubular steel Delta Joint upper control arm kit provide a significant upgrade to the 4Runner’s front suspension. The rear of the vehicle is improved with our 2" lift coil springs, ICON 2.0 Aluminum Series shocks, and the additional rear lower links. ICON's tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers provide 0-3.5" of front lift height
Extended Travel coilovers matched with ICON UCA provides increased front droop travel
Tubular rear lower links offer increased strength, improved geometry, and pinion angle adjustment
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series rear internal reservoir shocks with 5/8" shafts
Bolt-on system means no cutting or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103416830
Proxy Number 53053
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 131.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
System Components
58645 (qty: 1) | 07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL 2.5 VS IR COILOVER KIT
58451DJ (qty: 1) | 07-14 FJ/03-24 4RNR/03-23 GX TUBULAR UCA DJ KIT
54000T (qty: 1) | 07-14 FJ/03-24 4RNR/08-21 LC 200/03-23 GX TUBULAR LOWER TRAILING ARM KIT
52700 (qty: 1) | 07-14 FJ/03-24 4RNR/03-23 GX REAR 2" SPRING KIT
56505 (qty: 2) | 07-14 FJ/03-24 4RNR/03-23 GX 1-3" REAR 2.0 VS IR
