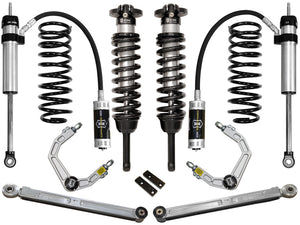

ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 4 Suspension System w/Billet Uca

K53054 Overview
ICON’s 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser Stage 4 suspension system provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 3 setup – extended travel 2.5 Series coilover shocks, an ICON billet aluminum upper control arm kit, 2” rear coil springs, and a billet aluminum rear lower link arm kit - but sees the addition of 2.5 Aluminum Series Remote Reservoir rear shocks for balanced damping characteristics front to rear. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable “fade” occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON’s “Bump Zone” technology which significantly increases damping ability in the last 2” of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock
Bolt-on system means no cutting or welding necessary for install
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers provide 0-3.5" of front lift height
Extended Travel coilovers matched with ICON UCA provides increased front droop travel
Billet Aluminum rear lower links offer on vehicle pinion angle adjustment
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103416847
Proxy Number 53054
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 143.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
System Components
58645 (qty: 1) | 07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL 2.5 VS IR COILOVER KIT
58551DJ (qty: 1) | 07-14 FJ/03-24 4RNR/03-23 GX BILLET UCA DJ KIT
54000 (qty: 1) | 07-14 FJ/03-23 4RNR/08-21 LC 200/03-23 GX BILLET LOWER TRAILING ARM KIT
52700 (qty: 1) | 07-14 FJ/03-24 4RNR/03-23 GX REAR 2" SPRING KIT
57810P (qty: 1) | 07-23 FJ/03-24 4RNR/03-23 GX 1-3" REAR 2.5 VS RR PAIR
