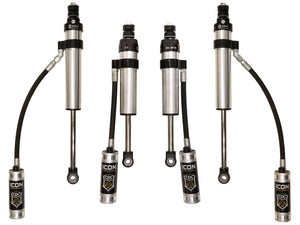

ICON 98-07 Toyota Land Cruiser 100 Series/Lexus LX470 0-3in Stage 3 Suspension System

K53083 Overview
The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 3 shock system for maximum suspension travel and performance with tuning adjustability. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads. ICON's CDC Valve upgrade is included in this stage front and rear for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Vehicle specific tuned front and rear shocks for superior shock damping and control
Remote reservoirs provided for extended shock damping performance
ICON CDCV equipped shocks front and rear for fully adjustable tuneability of your shocks
6061 Aircraft grade aluminum CNC machined components
2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
FK rod end bearings for extended longevity and minimal deflection
No cutting or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103417172
Proxy Number 53083
Shipping Width 10.00 in
Shipping Length 39.00 in
Shipping Depth 9.00 in
Shipping Weight 57.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #58: Kits consist of shocks only. Additional components required to achieve desired lift height over stock.
APPLICATION NOTE #71: Any kit with part# 57802P/CP in it with stock rear coil springs vehicle will ride in bump zone of shock. Stock or some aftermarket coil springs may come unseated at full droop.
APPLICATION NOTE #73: Aftermarket control arm required for clearance
APPLICATION NOTE #97: Not compatible with AHC equipped models
System Components
57807CP (qty: 1) | 98-07 LAND CRUISER 100 SERIES 0-3" FRONT 2.5 VS RR CDCV PAIR
57802CP (qty: 1) | 91-07 LAND CRUISER 80/100 0-3" REAR 2.5 VS RR CDCV PAIR
