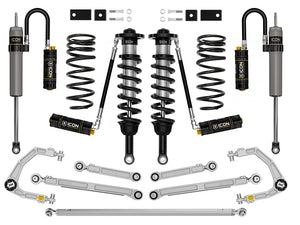

ICON 22-23 Toyota Tundra 2-3.5in Stage 11 Suspension System

K53201 Overview
The ICON Vehicle Dynamics Stage 11 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 10 system with the addition of triple rate rear coils springs and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the rear coils and track bar, a 2.5 Series CDCV remote reservoir front coilover shock and billet aluminum front upper control arm combo is included along with a front sway bar drop kit and 2.5 Aluminum Series CDCV rear remote reservoir shocks with billet upper and lower rear links.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Vehicle specific design for 2022-2025 Toyota Tundra
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Adjustable front ride heights from 1.252-3.5” of front lift over stock when used with included billet aluminum UCAs
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift (non-TRD models)
On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103421667
Proxy Number 53201
Shipping Width 13.00 in
Shipping Length 30.00 in
Shipping Depth 7.00 in
Shipping Weight 205.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #141: Tundra/Sequoia equipped with automatic leveling headlights or Load-Leveling Rear Height Control Air Suspension, part # 55153 is also required
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #146: Tundra SR5 equipped with TRD Sport package lift range will be 2.25-4.5"
APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required for TRD Pro.
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.5" over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-3" over stock
TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock
TECH NOTE: Included rear springs net .5" of rear lift on a Tundra without a TRD suspension package. A Tundra equipped with a TRD suspension package and TRD Pro will net 0" of lift, remaining at stock height in the rear. If taller rear ride heights are desired, consider ICON part # K53201S.
System Components
58770C (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA 2.5 VS RR CDCV COILOVER KIT
58561DJ (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT
55154 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA SWAY BAR DROP KIT
54002 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA BILLET REAR LOWER LINK KIT
54102 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT UPR LINK KIT
54202 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR
51210 (qty: 1) | 22-25 TUNDRA .5" LIFT TRIPLE RATE REAR COIL SPRING KIT
57840CP (qty: 1) | 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 2.5 VS CDCV RR PAIR
