ICON 22-23 Toyota Tundra 2-3.25in Stage 6 3.0 Suspension System

K53216T Overview
The ICON Vehicle Dynamics Stage 6 3.0 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 5 3.0 suspension system with the addition of triple rate rear coil springs and an adjustable rear track bar. To compliment the rear coils and track bar, 3.0 Series CDEV front coilovers are included along with tubular front upper control arms, a billet rear upper/lower link combo, a front sway bar drop kit, and 3.0 Series CDEV rear shocks. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Vehicle specific design for 2022-2025 Toyota Tundra

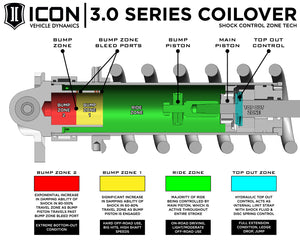

3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
Adjustable front ride heights from 2-3.25” of front lift over stock when used with included tubular UCAs
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift (non-TRD models)
On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103421735
Proxy Number 53216
Shipping Width 15.00 in
Shipping Length 33.00 in
Shipping Depth 10.00 in
Shipping Weight 246.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift lange.
APPLICATION NOTE #141: Tundra/Sequoia equipped with automatic leveling headlights or Load-Leveling Rear Height Control Air Suspension, part # 55153 is also required
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required for TRD Pro.
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 2-3.25" over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 2-2.75" over stock
TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 3-4.5” over stock
TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock
TECH NOTE: Included rear springs net .5" of rear lift on a Tundra without TRD Off-Road or TRD Sport suspension packages. A Tundra equipped with TRD Off-Road or TRD Sport packages and TRD Pro will net 0" of lift, remaining at stock height in the rear. If taller rear ride heights are desired, consider ICON part # K53216TS.
System Components
58775E (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA 3.0 VS RR CDEV COILOVER KIT
58461DJ (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT
55154 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA SWAY BAR DROP KIT
54002T (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA TUBULAR REAR LOWER LINK KIT
54102T (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R TUBE UPR LINK KIT
54202 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR
53508 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA IIC INSTALL KIT
51210 (qty: 1) | 22-25 TUNDRA .5" LIFT TRIPLE RATE REAR COIL SPRING KIT
57845EP (qty: 1) | 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 3.0 VS RR CDEV PAIR
