K53222T

K53222T Overview
The ICON Vehicle Dynamics Stage 3 EXP suspension system for the 2005-2023 Toyota Tacoma provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 33" tires. This system features the innovative new 2.5 EXP series coilover shocks, sway bar relocation brackets, rear add-a-leaf, and our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Vehicle specific design for 2005-2023 Toyota Tacoma
2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Adjustable front ride heights from 1-2” of front lift over stock with the use of snap ring
Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
Allows for full wheel travel without overstressing OE components
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10731700) Delta Joint for extended longevity
Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5” of rear lift
2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103421094
Proxy Number 53222
Shipping Width 6.00 in
Shipping Length 32.00 in
Shipping Depth 5.00 in
Shipping Weight 100.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Minor fender trimming may be required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #110: Trimming required for recommended tire size
APPLICATION NOTE #144: Not compatible with TRD Pro
TECH NOTE: Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs

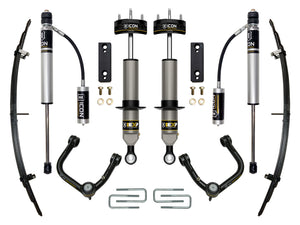

System Components
58632 (qty: 2) | 05-23 TACOMA FRONT 2.5 EXP COILOVER
611030 (qty: 1) | 05-23 TACO/07-09 FJ/03-09 T4R SWAYBAR RELOCATION KIT
58450DJ (qty: 1) | 05-23 TACOMA TUBULAR UCA DJ KIT
51100 (qty: 1) | 96-23 TACOMA/00-06 TUNDRA 1.5" ADD-A-LEAF KIT
56503R (qty: 2) | 05-23 TACOMA 4WD 0-1.5" REAR 2.0 VS RR
