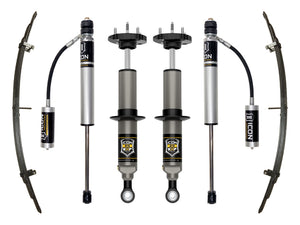

ICON 07-21 Toyota Tundra 0-2.25in Lift Stage 3 EXP Suspension System

K53228 Overview
The ICON Vehicle Dynamics Stage 3 EXP suspension system for the 2007-2021 Toyota Tundra provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.0 Aluminum Series nitrogen charged remote reservoir shocks for the rear.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Vehicle specific design for 2007-2021 Toyota Tundra
2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Adjustable front ride heights from 0-2.25” of front lift over stock with the use of snap ring
Vehicle specific tuned for superior shock damping and control
Rear leaf spring expansion pack provides 1.5” of rear lift and improved ride quality
2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103421148
Proxy Number 53228
Shipping Width 6.00 in
Shipping Length 32.00 in
Shipping Depth 5.00 in
Shipping Weight 113.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming may be required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
APPLICATION NOTE #122: Not Compatible With Rear Trd Sway Bar Kit
APPLICATION NOTE #144: Not Compatible With Trd Pro
System Components
58655 (qty: 2) | 07-21 TUNDRA FRONT 2.5 EXP COILOVER
51200 (qty: 1) | 07-21 TUNDRA REAR EXPANSION PACK KIT
56506R (qty: 2) | 07-21 TUNDRA 0-1.5" REAR 2.0 VS RR
