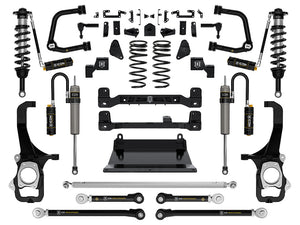

K53277T Overview
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
Maintains factory track width
Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
Single piece high-strength ductile iron steering knuckles with built-in 4" drop
Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
Included sway bar drop brackets reduce bind in OE sway bar links
Front and rear heavy-duty bump stop brackets
High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103425436
Proxy Number 53277
Shipping Width 24.00 in
Shipping Length 25.00 in
Shipping Depth 9.00 in
Shipping Weight 465.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: No
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
TECH NOTE: Requires minimum of 20" diameter wheels
TECH NOTE: Models equipped with automatic leveling headlights also require part number 55153
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
TECH NOTE: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
TECH NOTE: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
TECH NOTE: Provides 3" of rear lift on a Tundra equipped with TRD Off-Road or TRD Sport suspension packages and TRD Pro. A Tundra without TRD Off-Road or TRD Sport suspension packages will net 3.5" of rear lift.
System Components
51010 (qty: 1) | 22-24 TUNDRA FRONT BOX KIT 1
51011 (qty: 1) | 22-24 TUNDRA FRONT BOX KIT 2
51012 (qty: 1) | 22-24 TUNDRA REAR BOX KIT
51014 (qty: 1) | 22-24 TUNDRA FRONT SKID PLATE
58771C (qty: 1) | 22-24 TUNDRA 2.5 VS RR CDCV 6" COILOVER KIT
51013 (qty: 1) | 22-24 TUNDRA REAR 3.5" LIFT TRIPLE RATE COIL SPRING KIT
58461DJ (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT
51017 (qty: 1) | 22-24 TUNDRA FRONT SKID PLATE
57841CP (qty: 1) | 22-24 TUNDRA 3.5" REAR 2.5 VS CDCV RR PAIR
54002T (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA TUBULAR REAR LOWER LINK KIT
54102T (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R TUBE UPR LINK KIT
54202 (qty: 1) | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR
