ICON 2017+ Ford F-250/F-350 2.5in Stage 1 Suspension System

K62511 Overview
This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads. ICON's Stage 1 System is comprised of dual rate coil springs, alignment cams, and ICON 2.0 Aluminum Series front and rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Fits 2017-2019 F250 / F350 4WD applications
Approximately 25% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
ICON shocks feature vehicle specific tune for superior performance and ride quality
Shocks are fully rebuildable and revalvable
Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103418025
Proxy Number 62511
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 80.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #119: Rare Cases Require A 2.6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split
TECH NOTE: Compatible with 4WD models only
TECH NOTE: Not compatible with F-350 Cab & Chassis models
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock

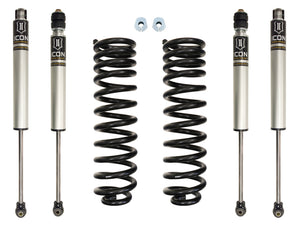

System Components
62510 (qty: 1) | 05-19 FSD FRONT 2.5" DUAL RATE SPRING KIT
66512 (qty: 2) | 05-25 FSD 4WD 2.5" FRONT 2.0 VS IR
66516 (qty: 2) | 17-25 FSD REAR 0-2" 2.0 VS IR
