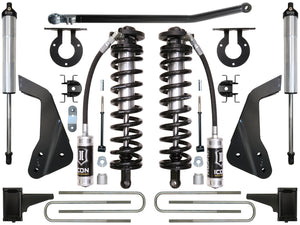

ICON 05-07 Ford F-250/F-350 4-5.5in Stage 2 Coilover Conversion System

K63112 Overview
Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Bolt-in system fits in OE coil bucket location
Ride height adjustable coilovers (4-5.5")
Increased wheel travel and ride quality over stock
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Shocks are fully rebuildable and revalveable
Coilover conversion allows for addition of secondary shock
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Eibach coil springs guaranteed for life against sagging or breakage
FK Rod End bearings for extended longevity and minimal deflection
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103418216
Proxy Number 63112
Shipping Width 13.00 in
Shipping Length 31.00 in
Shipping Depth 7.00 in
Shipping Weight 190.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
Ships in multiple boxes
System Components
64000 (qty: 1) | 05-07 FSD FRONT 4.5" BOX KIT
61721 (qty: 1) | 05-25 FSD 4WD 4-5.5" 2.5 VS RR BOLT IN CO CONVERSION KIT
64035 (qty: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
64040 (qty: 1) | 05-10 FSD RADIUS ARM DROP KIT
195275 (qty: 1) | 99-25 FSD 5" BLOCK KIT
37002 (qty: 1) | 99-10 FSD REAR 17" U-BOLT KIT
37601P (qty: 1) | 99-25 3-6" FSD REAR 2.5 VS IR PAIR
