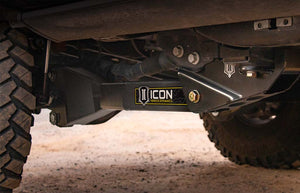

ICON 2017+ Ford F-250/F-350 4-5.5in Stage 6 Coilover Conversion System w/ Radius Arm

K63156R Overview
Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Bolt-in system fits in OE coil bucket location
Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
Eibach coil springs guaranteed for life against sagging or breakage
FK Rod End bearings for extended longevity and minimal deflection
Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
Increased wheel travel and ride quality over stock
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Shocks are fully rebuildable and revalveable
Coilover conversion allows for addition of secondary shock
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103418544
Proxy Number 63156
Shipping Width 13.00 in
Shipping Length 31.00 in
Shipping Depth 7.00 in
Shipping Weight 342.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock
TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25" over stock
TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
Ships in multiple boxes
System Components
64050 (qty: 1) | 08-22 FSD FRONT 4.5" BOX KIT
61721C (qty: 1) | 05-25 FSD 4WD 4-5.5" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT
67710CP (qty: 1) | 05-22 FSD 4WD 4.5" FRONT 2.5 VS PB CDCV PAIR
64038 (qty: 1) | 17-25 FSD ADJ TRACKBAR KIT
64041 (qty: 1) | 05-22 FSD RADIUS ARM SYSTEM
64055 (qty: 1) | 17-22 FSD RADIUS ARM DROP KIT
65000 (qty: 1) | 05-22 FSD DUAL STABILIZER KIT
36511 (qty: 2) | 99-25 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR
195275 (qty: 1) | 99-25 FSD 5" BLOCK KIT
67002 (qty: 1) | 11-25 FSD REAR 17" U-BOLT KIT
37701CP (qty: 1) | 99-25 FSD 3-6" REAR 2.5 VS PB CDCV PAIR
