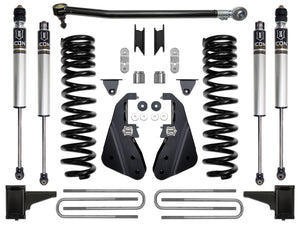

ICON 2020+ Ford F250/F350 4.5in Stage 1 Suspension System

K64521 Overview
The 2020-2022 Ford Super Duty trucks sit at a lower ride height than 2017-2019 models, and although many of the 2017-2019 components will physically fit 2020 models, the resulting ride height is often taller than desired. So, engineers at ICON designed new progressive rate coil springs that achieve the correct advertised lift heights while still retaining the great ride quality, predictability, and performance that our Super Duty systems are known for.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Fits 2020-2022 F-250 / F-350 4WD applications
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Approximately 50% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
Radius arm drop brackets correct geometry and caster for optimal alignment specs
ICON shocks feature vehicle specific tune for superior performance and ride quality
Shocks are fully rebuildable and revalvable
Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
FK Rod End bearings provide extended longevity and minimal deflection
Lifetime guarantee against coil spring breakage or sag
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103418674
Proxy Number 64521
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 200.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #115: Lift Heights Based On 4Wd Crew Cab Diesel
TECH NOTE: Trucks equipped with Tremor package with have front lift height of 3.5" over stock
TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
Ships in multiple boxes
System Components
64050 (qty: 1) | 08-22 FSD FRONT 4.5" BOX KIT
64011 (qty: 1) | 20-22 FSD FRONT 4.5” DUAL RATE COIL KIT
64038 (qty: 1) | 17-25 FSD ADJ TRACKBAR KIT
64055 (qty: 1) | 17-22 FSD RADIUS ARM DROP KIT
195275 (qty: 1) | 99-25 FSD 5" BLOCK KIT
67003 (qty: 1) | 11-25 FSD REAR 15" U-BOLT KIT
66513 (qty: 2) | 05-22 FSD 4WD 4.5" FRONT 2.0 VS IR
66516 (qty: 2) | 17-25 FSD REAR 0-2" 2.0 VS IR
