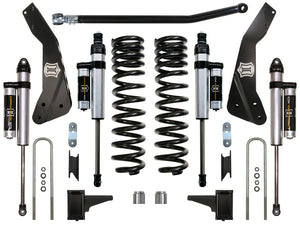

ICON 11-16 Ford F-250/F-350 4.5in Stage 3 Suspension System

K64562 Overview
This 4.5" System for the 2011-2016 Super Duty is one of the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The dual rate front coil springs combined with our ICON 2.5 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks, U-bolts, and our patented adjustable track bar with upgraded bearing giving the front end of these trucks perfect track alignment. The Stage 3 system also upgrades the front and rear shocks to our 2.5" Aluminum Series piggyback reservoir shocks for even better ride quality and performance.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
50% increase in wheel travel
Less body-roll than stock truck
4.5" more travel from ride height to front bump stops
Dual rate coil spring
Lifetime guarantee that coil springs won’t sag
Clears 35" tall tires & 37" tall tires w/ minor trimming
No change in towing capacity
No drive shaft modifications needed
Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
100% bolt-on system - no cutting or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103418810
Proxy Number 64562
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 229.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
APPLICATION NOTE #40: Radius Arm / 4-Link Frame Brackets Will Require Minor Drilling Into Frame To Complete Install
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
System Components
64050 (qty: 1) | 08-22 FSD FRONT 4.5" BOX KIT
64010 (qty: 1) | 05-19 FSD FRONT 4.5" DUAL RATE SPRING KIT
64035 (qty: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
64045 (qty: 1) | 11-16 FSD RADIUS ARM DROP KIT
195275 (qty: 1) | 99-25 FSD 5" BLOCK KIT
67002 (qty: 1) | 11-25 FSD REAR 17" U-BOLT KIT
67710P (qty: 1) | 05-22 FSD 4WD 4.5" FRONT 2.5 VS PB PAIR
37701P (qty: 1) | 99-25 FSD 3-6" REAR 2.5 VS PB PAIR
