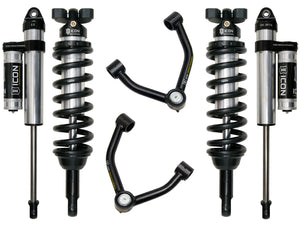

ICON 2015+ Chevrolet Colorado 1.75-3in Stage 3 Suspension System

K73053 Overview
ICON engineers’ primary focus for the GM Colorado / Canyon was to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. Researching each component of the GM platform’s suspension and addressing any areas where performance could be extracted, a 25% increase in overall wheel travel was achieved. The Stage 3 system includes vehicle specific tuned 2.5” coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-3” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2022 GM Colorado/Canyon Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Fits 2WD and 4WD models
Compatible with diesel models
25% increase in wheel travel over stock
Improved ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Height-adjustable coilovers offer 1.75-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Tubular steel Delta Joint upper control arms
100% Bolt-on system - no drilling or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103419206
Proxy Number 73053
Shipping Width 13.00 in
Shipping Length 26.00 in
Shipping Depth 7.00 in
Shipping Weight 84.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
TECH NOTE: Not compatible with Colorado ZR2
TECH NOTE: Canyon AT4 front lift height range is .75-2" over stock
TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock
System Components
71010 (qty: 1) | 15-22 COLORADO 2.5 VS IR COILOVER KIT
78650DJ (qty: 1) | 15-22 COLORADO TUBULAR UCA DJ KIT
77750P (qty: 1) | 15-22 COLORADO 0-2" REAR 2.5 VS PB PAIR
