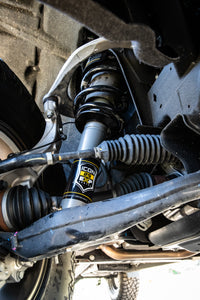

ICON 19-23 GM 1500 2.38-3.75in Stage 3 EXP Suspension System w/ Billet UCA

K73073 Overview
The ICON Vehicle Dynamics Stage 3 EXP complete suspension system for the 2019-2023 GM 1500 pickup builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.5 Aluminum Series shocks with piggyback reservoirs for the rear.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Vehicle specific design for 2019-2023 GM 1500 pickups
2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Adjustable front ride heights from 2.375-3.75” of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine)
One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
7/8” diameter induction hardened, chrome plated shock shaft with inverted shaft-up design
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
2.5 Aluminum Series rear piggyback reservoir shocks provide increased performance and balanced tune with coilovers
CNC machined 6061 aluminum components with a black anodized finish
All ICON shock absorbers are fully rebuildable and re-tunable
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103421605
Proxy Number 73073
Shipping Width 6.00 in
Shipping Length 32.00 in
Shipping Depth 5.00 in
Shipping Weight 81.0000 LB
Technical Notes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Tires (Silverado 1500): 35"x12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Tires (Sierra 1500): 34"x12.00" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #83: Trimming Of The Upper Control Arm Stop Required Or Down Travel Will Be Limited By Upper Arm Stop
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size.
TECH NOTE: Not compatible with models equipped with Adaptive Ride Control (ARC)
TECH NOTE: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models
TECH NOTE: Not compatible with Silverado 1500 TRAIL BOSS or Sierra 1500 AT4
TECH NOTE: Models equipped with gasoline engines will have front lift height range of 2.375-3.75” over stock (lift heights vary slightly depending on trim/engine)
TECH NOTE: Models equipped with Duramax diesel engines will have front lift height range of 1.75-3” over stock
System Components
71607 (qty: 2) | 19-23 GM 1500 FRONT 2.5 EXP COILOVER
78720DJ (qty: 1) | 19-24 GM 1500 BILLET UCA DJ KIT
77703P (qty: 1) | 19-23 GM 1500 0-2" REAR 2.5 VS PB PAIR
