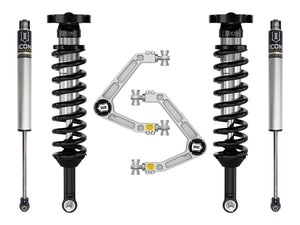

ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 2 Suspension System W Billet UCA

K73092 Overview
ICON Vehicle Dynamics 2023-2024 Chevrolet Colorado WT, LT, and Z71 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers, specifically designed for the narrower track width of these Chevrolet Colorado submodels, are also height adjustable for 1.75-2.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations and their longer than stock length improves performance by increasing front wheel travel. Billet aluminum Delta Joint PRO upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and allow proper wheel alignment at the lift height this system provides. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2023-2024 Chevrolet Colorado WT, LT, and Z71 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable Coilovers from 1.75-2.5" of front lift height over stock
Billet Upper Control Arms with Delta Joint PRO ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.0 Aluminum Series rear internal reservoir shocks with 5/8" polished shafts
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103427621
Proxy Number 73092
Shipping Width 13.00 in
Shipping Length 26.00 in
Shipping Depth 7.00 in
Shipping Weight 83.0000 LB
Technical Notes
Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 5.46” Backspace / 18mm Offset
Recommended Aftermarket Tires: 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #160: Will not fit GMC Canyon. Will not fit Chevrolet Colorado Trail Boss or ZR2
TECH NOTE: Rear shocks are compatible with 0-2" of rear lift over stock
TECH NOTE: Only compatible with OE steering knuckles. DO NOT install in combination with ANY aftermarket steering knuckles.
System Components
71616 (qty: 1) | 23-24 CHEVROLET COLORADO 2.5 VS IR COILOVER KIT
78761DJ (qty: 1) | 23-24 CHEVROLET COLORADO BILLET UCA DJ PRO KIT
76550 (qty: 2) | 15-24 GM CANYON/COLORADO 0-2" REAR 2.0 VS IR
