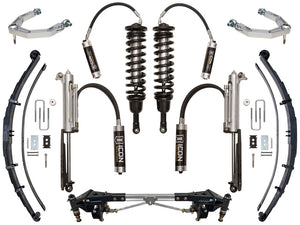

ICON 10-14 Ford Raptor Stage 4 Suspension System

K93054 Overview
The Ford SVT Raptor is an extremely capable truck that has captured the attention of the off-road community over the past few years. Since the Raptor’s release ICON Vehicle Dynamics’ engineers have pushed this vehicle to extremes in order to develop the most comprehensive suspension components on the market. From the brutal deserts of the Southwest, to the deep snow of Michigan’s U.P., to the wooded trails of the East coast, ICON suspension systems have been put to the test and performed flawlessly. Unable to leave “well-enough” alone, ICON is once again aiming to raise the bar in Raptor performance with the introduction of the RXT Rear Suspension System. Through a combination of in-house R&D and close collaboration with several Raptor enthusiast groups, ICON has spent the better part of the last year further identifying limiting factors in OE components and looking to further extrapolate performance out of this vehicle in complete bolt on fashion.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Key Features of the Raptor Front 3.0 Coilover Shock:
3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coilover Shocks
Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
Nitrogen Charged 6063-T832 Aluminum 10” Remote Reservoirs
Adjustable Ride Height from 1 – 3” of Lift
ICON Engineered Eibach Springs Offer Increased Travel and Performance
Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
Oversized 1” Heavy Duty CNC Machined Shock Shafts
Extended Droop Travel and Increased Overall Performance on and off road
Key Features of the Raptor Upper Control Arms:
6061 Billet Aluminum
Precision CNC Machined
Patented Delta Joint (U.S. Patent No. 10,731,700)
RSMX PTFE Lined 7/8” Rod Ends
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103419817
Proxy Number 93054
Shipping Width 48.00 in
Shipping Length 48.00 in
Shipping Depth 10.00 in
Shipping Weight 500.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #61: Aftermarket Exhaust May Need To Be Slightly Modified For Use With This Kit
APPLICATION NOTE #87: Installation Of Complete ICON System Required To Attain Advertised Wheel Travel. Use Of Any Other Manufacturers Components (Re Leaf Springs, Bump Stop Kit, Shocks) Will Not Provide Advertised Wheel Travel And Could Cause Unknown Damage.
Ships in multiple boxes
System Components
95000L (qty: 1) | 10-14 RAPTOR FRONT 3.0 VS COILOVER RR CDCV DRVR
95000R (qty: 1) | 10-14 RAPTOR FRONT 3.0 VS COILOVER RR CDCV PASS
98562DJ (qty: 1) | 10-20 RAPTOR BILLET UCA DJ KIT
95201L (qty: 1) | 10-14 RAPTOR RXT 3.0 ZETA RR DRVR
95201R (qty: 1) | 10-14 RAPTOR RXT 3.0 ZETA RR PASS
95120 (qty: 1) | 10-14 RAPTOR REAR AIR BUMP KIT
198501 (qty: 2) | 10-14 RAPTOR MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
95220H (qty: 1) | 10-14 RAPTOR LEAF SPRING HARDWARE KIT
