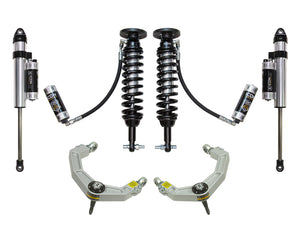

ICON 2014 Ford F-150 2WD 1.75-2.63in Stage 5 Suspension System w/Billet Uca

K93075 Overview
The ICON Vehicle Dynamics 2014 Ford F150 2WD Stage 5 suspension system is the best choice for drivers looking to maximize the on and off-road potential of their trucks and will inspire confidence behind the wheel in nearly any situation. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coilover shocks featuring an external remote reservoir w/ CDCV for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-2.63” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum upper control arms on the F150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. ICON 2.5 Aluminum Series Piggyback rear shocks w/ CDCV utilize a vehicle-specific valving that balances the performance of the truck from front to rear. 2.5" CDC reservoir front and rear shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's CDC Valve upgrade is included in this stage front and rear for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock with no change in towing capacity
Unique valving developed for the 2014 F150
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable coilovers from 1.75-2.63" of lift height
ICON CDCV equipped shocks front and rear for fully adjustable tuneability of your shocks
Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
FK Rod End bearings for extended longevity and minimal deflection
Bolt-on system - No cutting or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103419992
Proxy Number 93075
Shipping Width 13.00 in
Shipping Length 26.00 in
Shipping Depth 7.00 in
Shipping Weight 103.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
System Components
91815C (qty: 1) | 2014 F150 2WD 1.75-2.63" 2.5 VS CDCV COILOVER KIT
98505DJ (qty: 1) | 09-20 F150/14-20 EXPEDITION BILLET UCA DJ KIT
97720CP (qty: 1) | 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB CDCV PAIR
