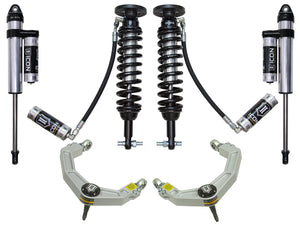

ICON 2015+ Ford F-150 4WD 2-2.63in Stage 4 Suspension System w/Billet Uca

K93084 Overview
ICON Vehicle Dynamics 2015-2020 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 2-2.63” allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2020 F-150 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Increased wheel travel and ride quality over stock with no change in towing capacity
Unique valving developed for the lighter weight of the 2015-2020 F-150
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable coilovers from 2-2.63" of lift height
Billet Aluminum Upper Control Arms for added strength, durability, and alignment spec range
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Bolt-on system - No cutting or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103420066
Proxy Number 93084
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 6.00 in
Shipping Weight 103.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
TECH NOTE: Only compatible with 4-wheel drive (4WD) models
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 1.5-2.13" over stock
TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
Ships in multiple boxes
System Components
91811 (qty: 1) | 15-20 F150 4WD 2-2.63" 2.5 VS RR COILOVER KIT
98505DJ (qty: 1) | 09-20 F150/14-20 EXPEDITION BILLET UCA DJ KIT
97720P (qty: 1) | 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR
