ICON 21-24 Ford F-150 4WD 2.5 Series Stage 4 Billet CDXS Suspension System

K93144D Overview
ICON Vehicle Dynamics 2021-2024 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. To achieve this, these systems include high-strength CNC machined ductile iron steering knuckles that replicate the suspension geometry of the F-150 Tremor and are effectively a Tremor “conversion” for your F-150 4WD. This Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring CDXS equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 3.5-4.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Their combination with the ICON steering knuckles also allows for a 20% increase in wheel travel compared to other ICON F-150 coilover kits.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
High strength ductile iron steering knuckles replicate F-150 Tremor suspension geometry
Adjustable coilovers offer 3.5-4.5" of front lift height over stock
2.5 Series front coilovers with remote reservoirs for improved shock cooling
Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
20% increase in front wheel travel and improved ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control

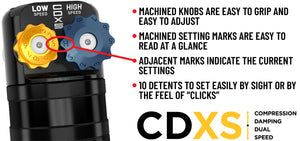

All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK rod end bearings for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin
2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
6061 Aircraft grade aluminum CNC machined components
100% Bolt-on system - no cutting or welding necessary for install
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103432083
Proxy Number 93144
Shipping Width 19.00 in
Shipping Length 29.00 in
Shipping Depth 10.00 in
Shipping Weight 197.0000 LB
Technical Notes
OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 34" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
APPLICATION NOTE #130: Equipped With Dynamic Bending Headlamps Purchase Part# 611071
APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required
TECH NOTE: Only compatible with 4-wheel drive (4WD) models
TECH NOTE: Models equipped with PowerBoost hybrid engines will have front lift height range of 3.25-4.25" over stock
TECH NOTE: Models equipped with Power-Stroke diesel engines will have front lift height range of 3-4" over stock
TECH NOTE: Not compatible with F-150 Raptor
TECH NOTE: Not compatible with models equipped with BlueCruise
TECH NOTE: Not compatible with models equipped with OnBoard Scales
TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock on most models
