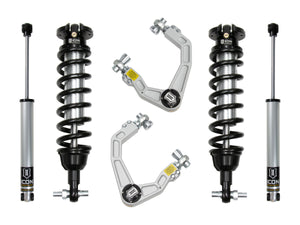

ICON 19-21 Ford Ranger 0-3.5in Stage 2 Suspension System w/ Billet UCA Alum Knuckle

K93202A Overview
ICON Vehicle Dynamics 2019-2021 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 2 (Billet) system includes vehicle-specific tuned, extended travel 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall suspension performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the ICON Delta Joint allows for full bump and extended droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2021 Ford Ranger Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
Height-adjustable coilovers provide a range of 0-3.5” of front lift height
Fits 2WD & 4WD applications
Increased lift height allows for fitment of larger and more aggressive tires
35% increase in front wheel travel over stock
ICON shocks feature vehicle specific tune for superior performance and ride quality
Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
Corrosion resistant CAD plated shock body with 7/8" shaft (2.5 Series coilovers)
FK Rod End bearings provide extended longevity and minimal deflection
Shocks are fully rebuildable and revalvable
ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
Delta Joint ball joints carry ICON's exclusive 5 year limited warranty
Direct bolt-in design makes for a simple and straightforward installation
Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect
Warranty
Installation Guide
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
Brand ICON Vehicle Dynamics
UPC 840103422428
Proxy Number 93202
Shipping Width 13.00 in
Shipping Length 26.00 in
Shipping Depth 7.00 in
Shipping Weight 78.0000 LB
Technical Notes
Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #110: Minor Trimming Required For Recommended Tire Size
TECH NOTE: Compatible with 2019-2021 Rangers equipped with aluminum knuckles only
TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
TECH NOTE: Not compatible with Ranger Raptor.
System Components
91255 (qty: 1) | 19-23 RANGER EXT TRAVEL 2.5 VS IR COILOVER KIT
98520DJ (qty: 1) | 19-21 RANGER BILLET UCA DJ KIT (AL KNUCKLE ONLY)
96519 (qty: 2) | 19-23 RANGER 0-1.5" REAR 2.0 VS NR
